Product SKUs

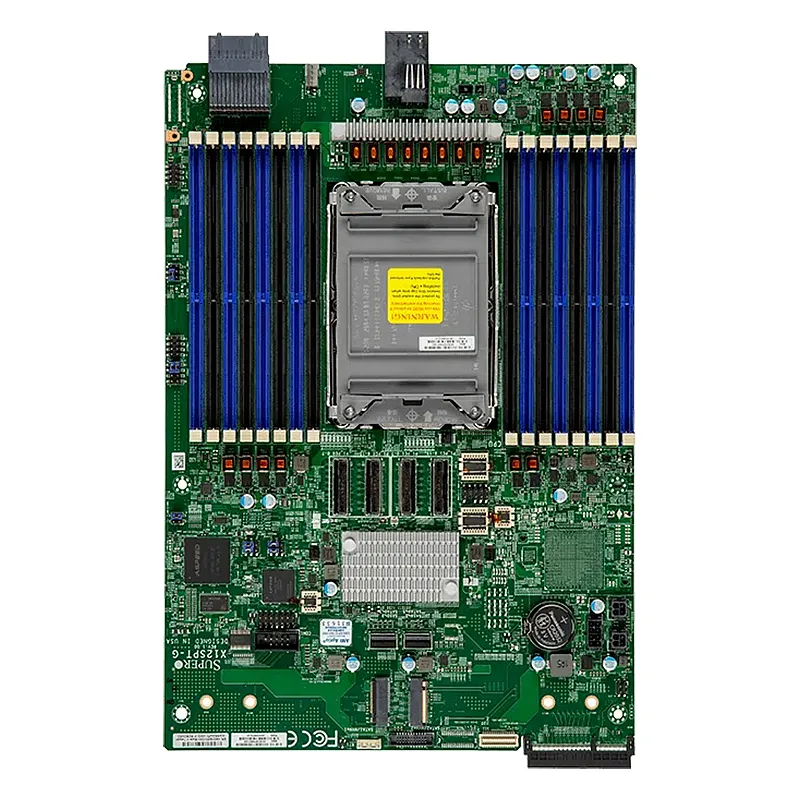

- MBD-X12SPT-G
Physical Stats
- Form Factor
Proprietary
- Dimension
8.53″ x 12.42″ (21.67cm x 31.55cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP - Core
Up to 40 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series
Up to 2TB ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC , DDR4 LRDIMM, RDIMM
- DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
DCPMM: 64GB, 128GB, 256GB
LRDIMM: 64GB, 128GB
LRDIMM: 128GB, 256GB
RDIMM: 8GB, 16GB, 32GB, 64GB
RDIMM: 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Graphics
1 ASPEED AST2600 BMC port(s)
- Network Controllers
Input / Output
- SATA
6 SATA3 (6Gbps) port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
- M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4, RAID 0 & 1
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
