| BIOS Features | ACPI 6.2SMBIOS 3.0 or laterUEFI 2.7 |
|---|---|
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Quad LAN with Intel i210 Gigabit Ethernet Controller |
| M.2 | M.2 Interface: 1 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C621A |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI UEFI |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA port(s) |
| DOM | DOM |
| Dimension | 12.1" x 10" (30.73cm x 25.4cm) |
| PCIe | 1 PCIe 4.0 x16, 1 PCIe 4.0 x8 (in x16 slot), 2 PCIe 4.0 x8, 3 PCIe 3.0 x8 |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| Form Factor | ATX |
| Memory Type | 3200/2933/2666 MT/s ECC, DDR4 LRDIMM (3DS), RDIMM (3DS) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Memory Voltage | 1.2V |
| CPU | 3rd Gen Intel Xeon Scalable processorsSingle Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Serial Port | 1 COM Port(s) (1 header) |
| SATA | 10 SATA3 (6Gbps) port(s) |
| Memory Capacity | 8 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 SeriesUp to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM |
| Error Detection | Corrects single-bit errors |
| Core | Up to 40 cores |

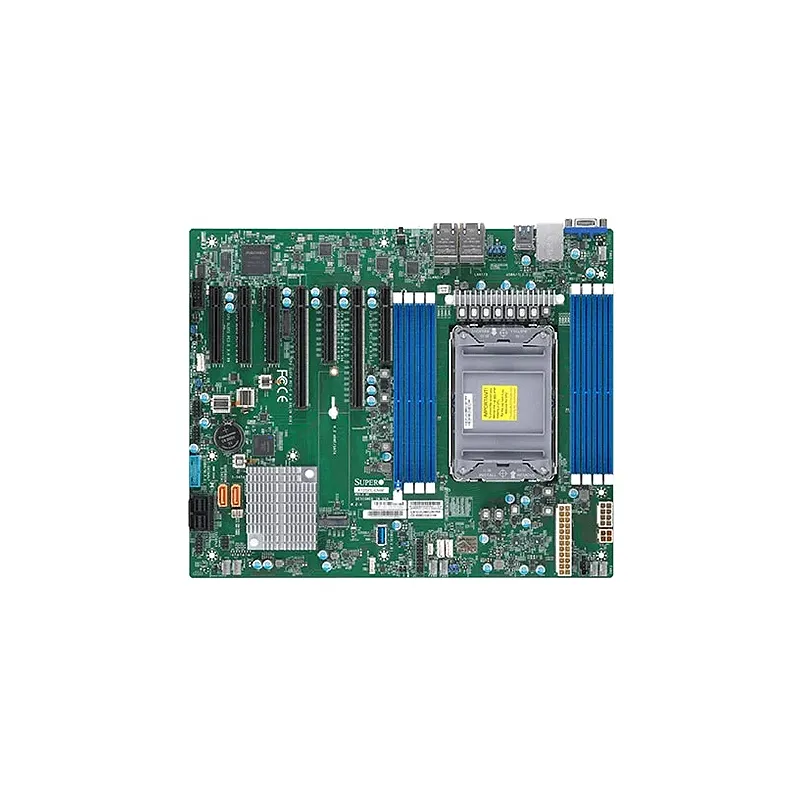

* NOTE: Image may not exactly match the product
Supermicro MBD-X12SPL-LN4F
$Quote1 Piece(MOQ)
100% New and Genuine
