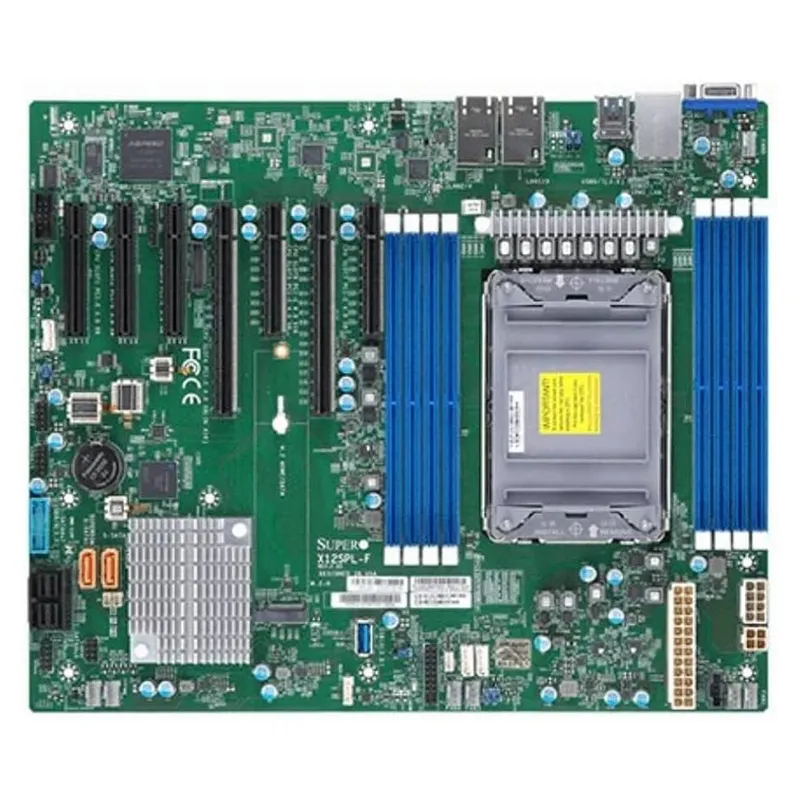

supermicro MBD-X12SPL-F-B

* NOTE: Image may not exactly match the product

supermicro MBD-X12SPL-F-B

supermicro MBD-X12SPL-F-B

$Quote1 Piece(MOQ)

SKU MBD-X12SPL-F-B Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Product SKUs
MBD-X13SAZ-F-B
Physical Stats
Form Factor
  • E-ATX
Dimension
  • 12.3″ x 10.1″ (31.24cm x 25.65cm)
Processor
CPU
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
  • Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
  • *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
Core
  • Up to 64 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
  • **24GB & 48GB DIMM only support 1 DPC.
  • *24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel® Xeon-SP CPU.
Memory Type
  • 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 rear)
  • 4 USB 3.2 Gen1 port(s) (2 rear; 1 via header; 1 type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 5.0 x16,
  • 3 PCIe 5.0 x8,
  • 2 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2
  • M.2 Interface: 2 PCIe 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8 or above
Management
Software
  • Redfish API
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • KVM with dedicated LAN
  • IPMI 2.0
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • Fan speed control
  • Overheat LED indication
  • 7 fans with tachometer status monitoring
Other Features
  • WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C – 50°C (32°F – 122°F)
Non-Operating Temperature Range
  • -20°C – 60°C (-4°F – 140°F)
Operating Relative Humidity Range
  • 10% – 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% – 95% (non-condensing)
Size

12.1" x 10" (30.73cm x 25.4cm)
USB Ports

6 USB 2.0 ports (2 rear + 4 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Product Name

supermicro MBD-X12SPL-F-B
Processor

CPU: 3rd Gen Intel Xeon Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Cores / Cache : Up to 40 cores
Input / Output SATA

10 SATA3 (6 Gbps) ports
Application

Server
Brand

supermicro
Packaging Details

Bulk
Chipset

Intel C621A Series
CPU Socket Type

Intel LGA-4189
CPU Brand

Intel
Memory

Memory Capacity: Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel Optane Persistent Memory, in 8 DIMM slots Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage: 1.2V Error Detection: Corrects single-bit errors
Warranty

1 Year
Internal I/O Connectors

PCI-E: 2 PCI-E 4.0 x8, 1 PCI-E 4.0 x16, 1 PCI-E 4.0 x8 (in x16 slot) 3 PCI-E 3.0 x8 M.2: M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280/22110 M.2 Key: M-Key
Products Status

New
Socket

LGA4189(Socket P+)
Back I/O Ports

2 RJ45 Gigabit Ethernet LAN ports 1 VGA port(s)
P/N

MBD-X12SPL-F-B
Form Factor

Micro-ATX
