Product SKUs

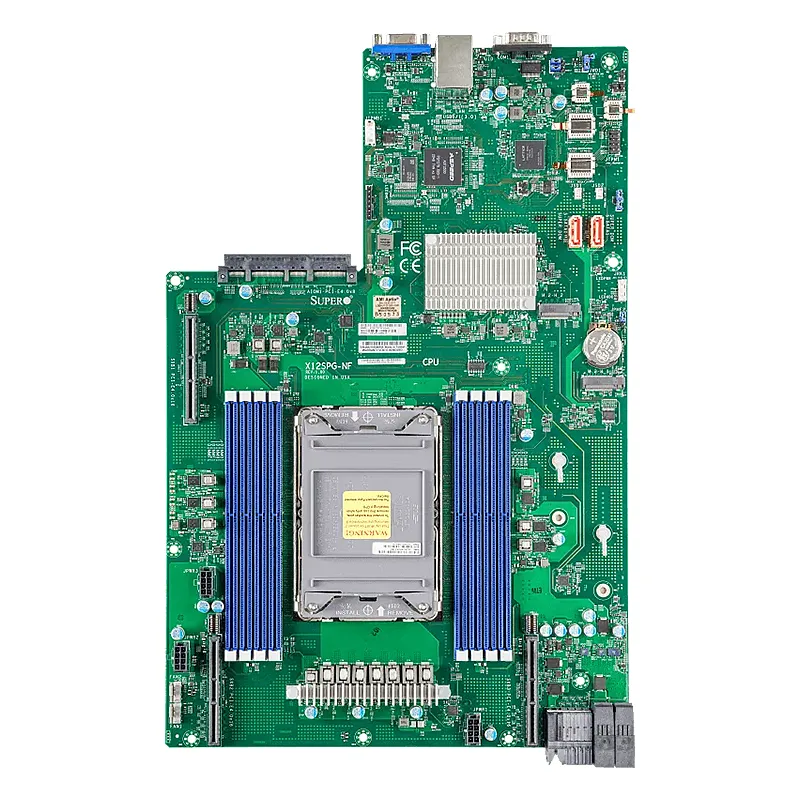

- MBD-X12SPG-NF
Physical Stats
- Form Factor
Proprietary
- Dimension
9.6″ x 14.5″ (24.38cm x 36.83cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP - Core
Up to 40 cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
LRDIMM: 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
- IPMI
ASPEED AST2500 BMC
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
Input / Output
- LAN
1 RJ45 Dedicated IPMI LAN port
- USB
2 USB 3.2 Gen1 port(s) (2 rear)
- Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 rear)
- DOM
2 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x8 AIOM,
3 PCIe 4.0 x16 Proprietary Slot - M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
- BIOS Features
ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
