Product SKUs

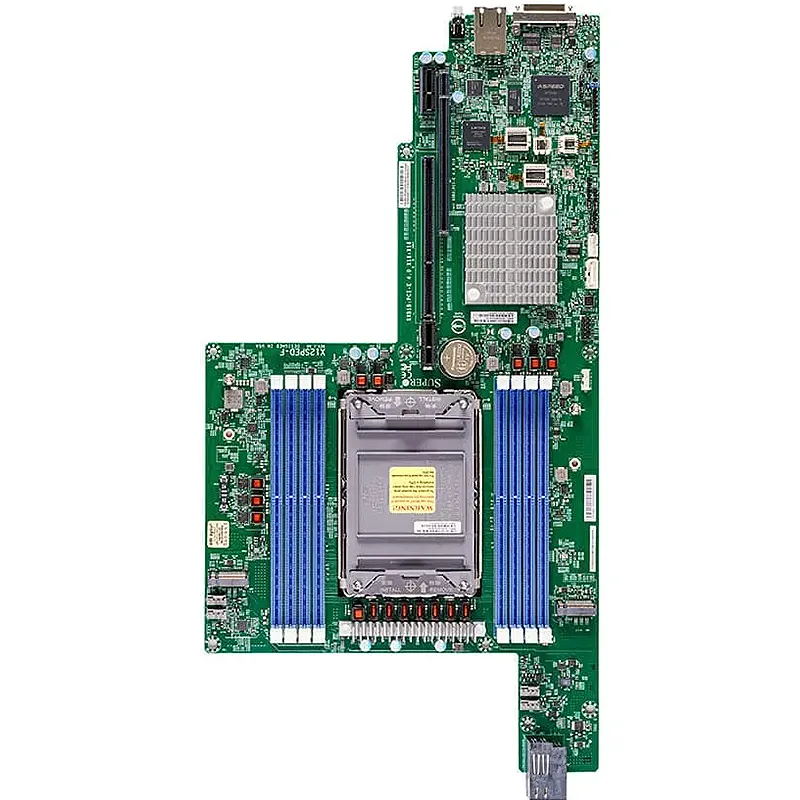

- MBD-X12SPED-F
Physical Stats
- Form Factor
Proprietary
- Dimension
16.36″ x 8.526″ (415.57cm x 216.56cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP - Core
Up to 40 cores
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
DCPMM: 64GB, 128GB, 256GB
LRDIMM: 64GB, 128GB, 256GB
RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621A
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Single LAN with Intel Ethernet Controller I210-AT
Input / Output
- USB
2 USB 2.0 port(s) (2 type A Via KVM connector)
- Video Output
1 VGA port(s) Via KVM connector
- Serial Port
1 COM Port(s) (1 Serial Port Via KVM connector)
- TPM
1 TPM Header & Chip both
Expansion Slots
- PCIe
1 PCIe 4.0 x16 (LP),
2 PCIe 4.0 x16 (FHHL) - M.2
M.2 Interface: 2 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
32MB SPI Flash with AMI BIOS
- BIOS Features
ACPI 6.2
UEFI 2.8
SMBIOS 2.8
SMBIOS 3.3 or later
Plug and Play (PnP)
PCI FW 3.2
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
