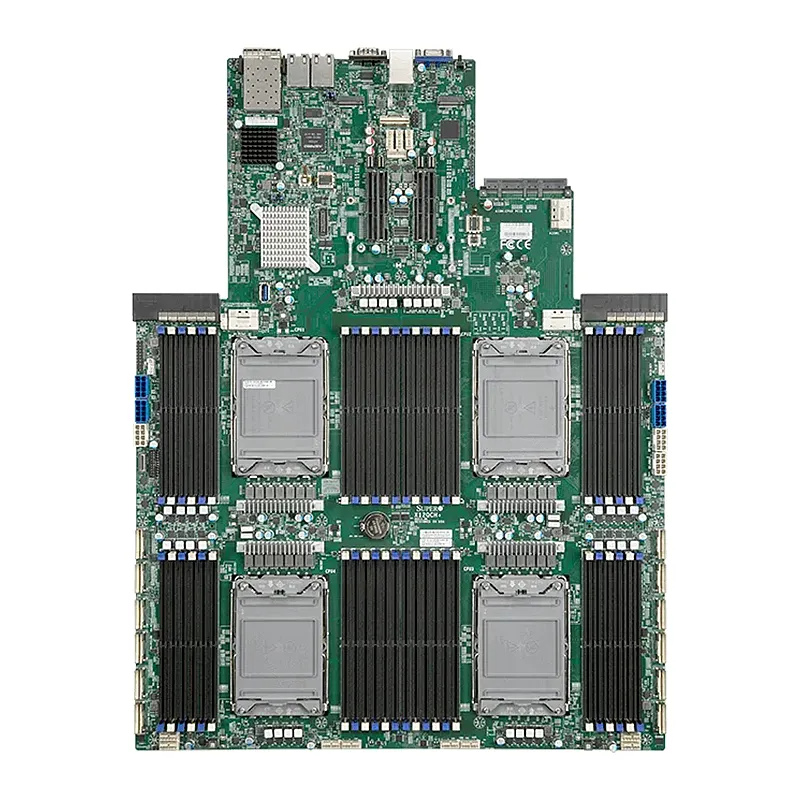

Supermicro MBD-X12QCH+

- 3rd Generation Intel® Xeon® Scalable processors
- Quad Socket LGA-4189 (Socket P+) supported, CPU TDP support Up to 250W TDP, 6 UPI up to 10.4 GT/s
Intel® C621A
Up to 12TB 3DS ECC LRDIMM/ RDIMM, DDR4-3200MHz; Up to 18TB 3DS ECC DDR4-3200:LRDIMM/RDIMM/Intel® DCPMM , in 48 DIMM slots
- 3 PCIe 3.0 x32 Left Riser Slot,
- 3 PCIe 3.0 x32 Right Riser Slot
- M.2 Interface: 2 SATA/PCIe 3.0 x4
- M.2 Form Factor: 2280/22110
- M.2 Key: M-Key
- U.2 Interface: 8 PCIe 3.0 x4 and 8 PCIe 3.0 x4 and 8 PCIe 3.0 x4 and 8 PCIe 3.0 x4
- 1 PCIe 3.0 x32 Left Riser Slot, Riser card PN: RSC-D2-668G4
- 1 PCIe 3.0 x32 Right Riser Slot, Riser card PN: RSC-D2R-668G4
Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Quad LAN with
- 2x 10G BaseT with Intel® X710-TM4; 2x 10G SFP+ with Intel® X710-TM4,
- (Optional) AIOM up to 100G QSFP 28
1 VGA port

Brand	Supermicro
TPM	1 TPM Header
Network Controllers	(Optional) AIOM up to 100G QSFP 28, 2x 10G BaseT with Intel X710-TM4; 2x 10G SFP+ with Intel X710-TM4, Quad LAN
M.2	M.2 Interface: 2 SATA/PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C621A
DIMM Sizes	128GB, 128GBLRDIMM: 16GB, 16GB, 256GB, 256GBRDIMM: 16GB, 32GB, 64GB
BIOS Type	AMI UEFI
LAN	4
Video Output	1 VGA port(s)
Dimension	17" x 21.9" (43.18cm x 55.63cm)
PCIe	1 PCIe 3.0 x32 Left Riser Slot AIOM, 1 PCIe 3.0 x32 Right Riser Slot AIOM, 3 PCIe 3.0 x32 Left Riser Slot, 3 PCIe 3.0 x32 Right Riser Slot, Riser card PN: RSC-D2R-668G4, Riser card PN:RSC-D2-668G4
USB	2 USB 3.2 Gen1 port(s) (2 rear type A)
Form Factor	Proprietary
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500 BMC
Memory Voltage	1.2V
CPU	3rd Gen Intel Xeon Scalable processorsQuad Socket Socket P+ (LGA-4189) supported, 6 UPI up to 10.4 GT/s, CPU TDP supports Up to 250W TDP
Serial Port	1 COM Port(s) (1 rear)
SATA	12 SATA3 (6Gbps) port(s)
Memory Capacity	48 DIMM slotsUp to 12TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 12TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores
