| M.2 | M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1Form Factor: 22110 |
|---|---|
| Chipset | Intel C621A |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB |
| BIOS Type | AMI UEFI |
| Dimension | 14.8" x 10.9" (37.59cm x 27.69cm) |
| PCIe | 3 PCIe 4.0 x16 |
| Form Factor | Proprietary |
| Memory Type | 3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM |
| Application | Server |
| Memory Voltage | 1.2V |
| CPU | 3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP |
| SATA | 1, 10, 5, Intel C621A controller for 4 SATA3 ports; RAID 0 |
| Memory Capacity | 16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/sUp to 4TB ECC LRDIMM |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 40 cores |
* NOTE: Image may not exactly match the product

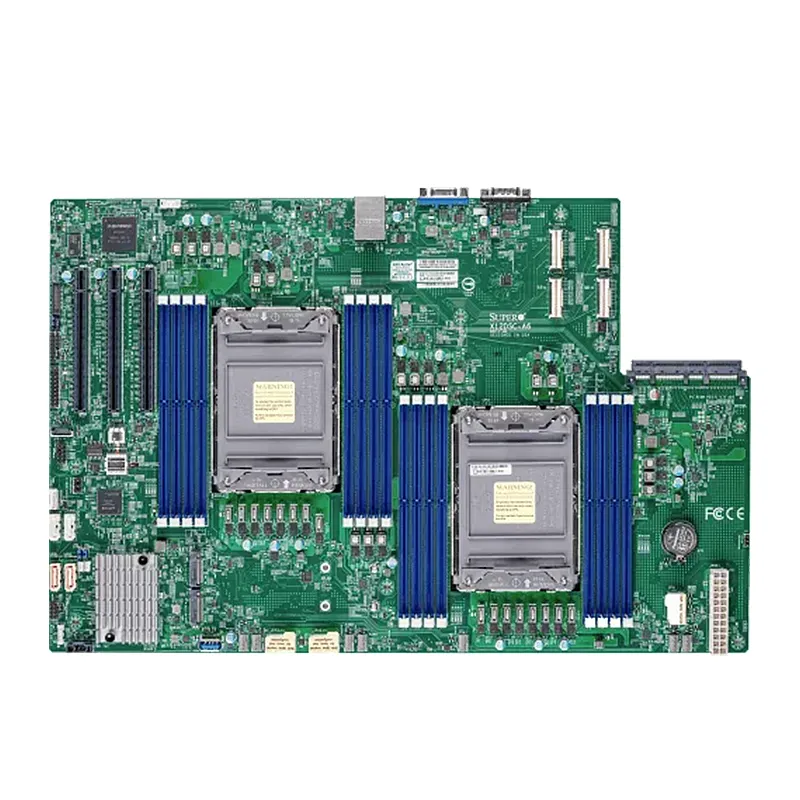

Supermicro MBD-X12DSC-A6
$Quote1 Piece(MOQ)
100% New and Genuine
