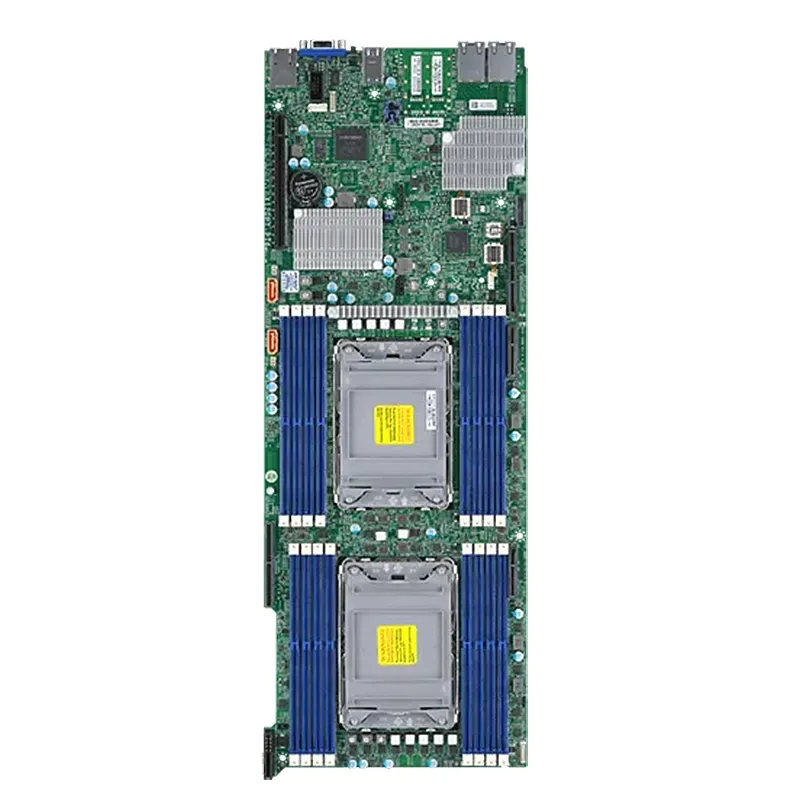

Supermicro MBD-X12DPT-PT6

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s

System Memory

Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
Memory Type
ECC DDR4 LRDIMM, RDIMM
DIMM Sizes
32GB, 64GB, 128GB, 256GB
LRDIMM: 32GB, 64GB, 128GB, 256GB
RDIMM: 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 4.0 x16 Left Riser Slot,
1 PCIe 4.0 x16 Right Riser Slot,
1 PCIe 4.0 x8 Right Riser Slot,
1 PCIe 4.0 x8 Proprietary Storage adapter Slot

System BIOS

Management

Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 10Gbase-T
Chipset	Intel C621A
DIMM Sizes	128GB, 256GB, 256GBLRDIMM: 32GB, 256GBRDIMM: 32GB, 32GB, 64GB
BIOS Type	AMI UEFI
LAN	2 RJ45 10 Gigabit Ethernet LAN ports
Video Output	1 VGA port(s)
DOM	DOM
Dimension	6.8" x 18.86" (17.27cm x 47.9cm)
PCIe	1 PCIe 4.0 x16 Left Riser Slot, 1 PCIe 4.0 x16 Right Riser Slot, 1 PCIe 4.0 x8 Proprietary Storage adapter Slot, 1 PCIe 4.0 x8 Right Riser Slot
USB	2 USB 3.2 Gen1 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	ECC DDR4 LRDIMM, RDIMM
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3rd Gen Intel Xeon Scalable processorsDual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
Serial Port	1 COM Port(s) (1 header)
SATA	6 SATA3 (6Gbps) port(s)
Memory Capacity	16 DIMM slotsUp to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/sUp to 4TB ECC LRDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
