Product SKUs

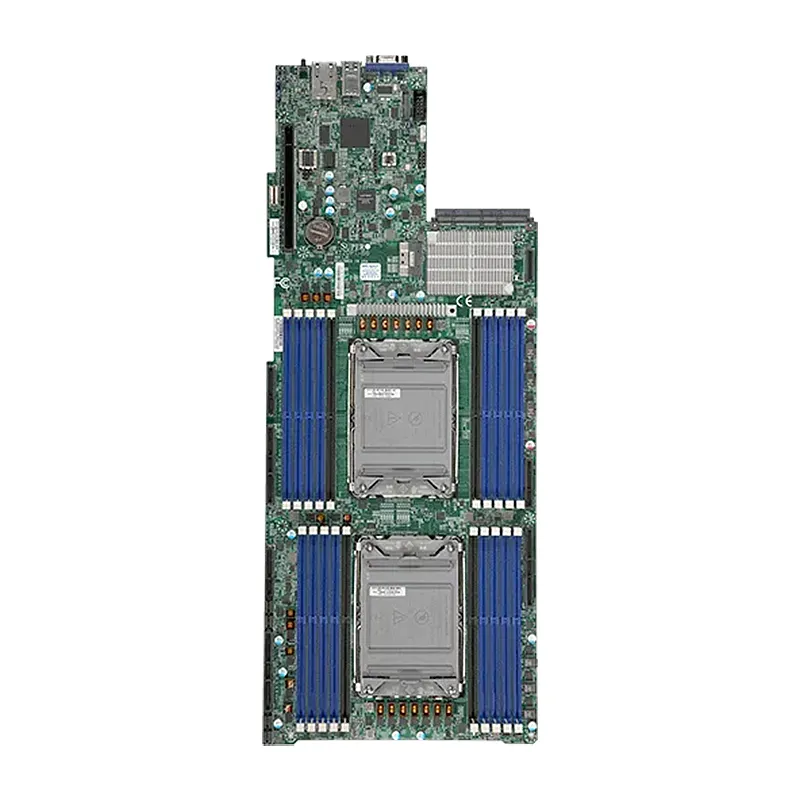

- MBD-X12DPT-B6
Physical Stats
- Form Factor
Proprietary Twin
- Dimension
7.6″ x 18.9″ (19.3cm x 48.01cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s - Core
Up to 38 cores
System Memory
- Memory Capacity
20 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s - Memory Type
ECC DDR4 LRDIMM, RDIMM
- DIMM Sizes
32GB, 64GB, 128GB
LRDIMM: 32GB, 64GB, 128GB, 256GB
RDIMM: 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Graphics
1 ASPEED AST2600 BMC port(s)
- Network Controllers
Single LAN, Networking options provided via AIOM module
Input / Output
- SATA
12 SATA3 (6Gbps) port(s)
- USB
2 USB 3.2 Gen1 port(s) (2 rear)
- Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x16 Left Riser Slot,
1 PCIe 4.0 x16 Right Riser Slot,
1 PCIe 4.0 x8 connector for SMC add-on cards,
1 PCIe 4.0 x16 AIOM,
1 PCIe 4.0 x8 Proprietary Storage adapter Slot,
PCIe 4.0 x16 AIOM Networking Slot,
PCIe 4.0 x8 M.2 Slot - M.2
Form Factor: 2260/2280/22110
System BIOS
- BIOS Type
AMI UEFI
Management
- Power Configurations
ACPI Power Management
