Product SKUs

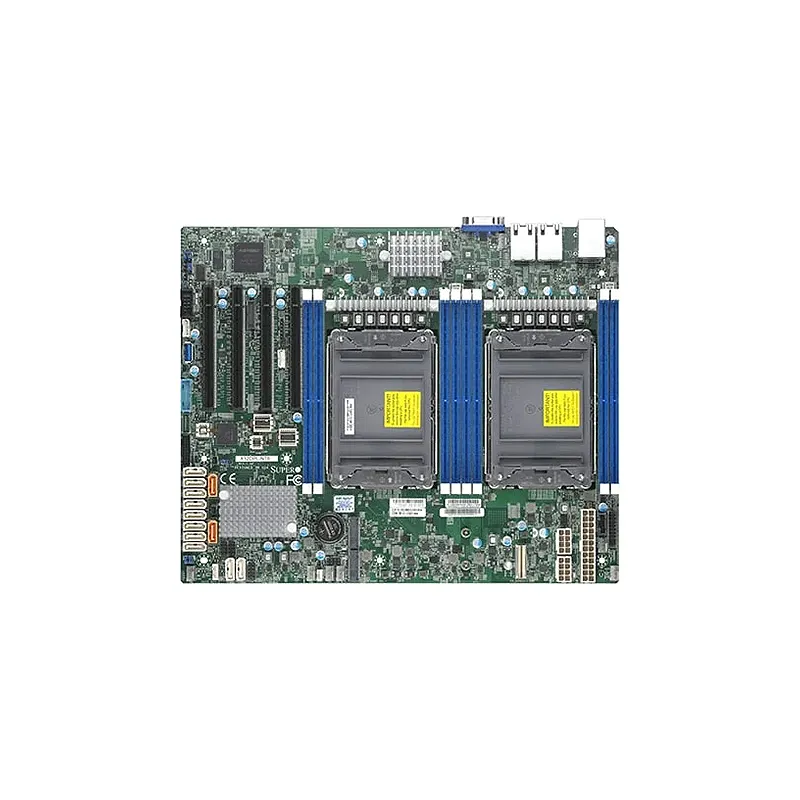

- MBD-X12DPL-NT6
Physical Stats
- Form Factor
ATX
- Dimension
12.23″ x 10″ (31.06cm x 25.4cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM
- DIMM Sizes
256GB
LRDIMM: 256GB
RDIMM: 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Graphics
1 ASPEED AST2600 BMC port(s)
- Network Controllers
Dual LAN with Intel X550 10GBase-T Ethernet Controller
Input / Output
- LAN
2 RJ45 10 Gigabit Ethernet LAN ports
- USB
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
- Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 header)
- DOM
2 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
4 PCIe 4.0 x16
- M.2
M.2 Interface: 1 PCIe 4.0 x4; 1 PCIe 4.0 x4
Form Factor: 2280/22110, 2280
Key: M-Key, M-Key
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
- Power Configurations
ACPI Power Management
