Product SKUs

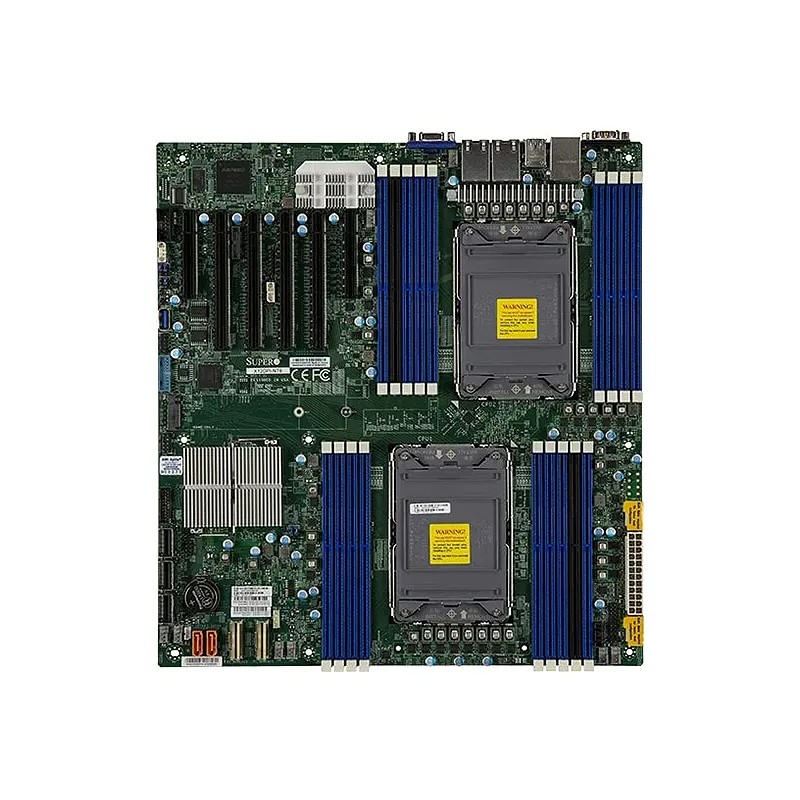

- MBD-X12DPi-NT6
Physical Stats
- Form Factor
E-ATX
- Dimension
12″ x 13″ (30.48cm x 33.02cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s - Core
Up to 40 cores
System Memory
- Memory Capacity
18 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only. - Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM
- DIMM Sizes
LRDIMM: 256GB
RDIMM: 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Dual LAN with 10GBase-T with Intel X550
Input / Output
- SATA
14 SATA3 (6Gbps) port(s)
- LAN
2 RJ45 10 Gigabit Ethernet LAN ports
- USB
2 USB 2.0 port(s) (2 via header)
7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A) - Video Output
2 VGA (1 rear bezel, 1 front panel) port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- TPM
1 TPM Header
Expansion Slots
- PCIe
4 PCIe 4.0 x16,
2 PCIe 4.0 x8 - M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
