Supermicro MBD-X12DPI-N6-B Server Motherboard

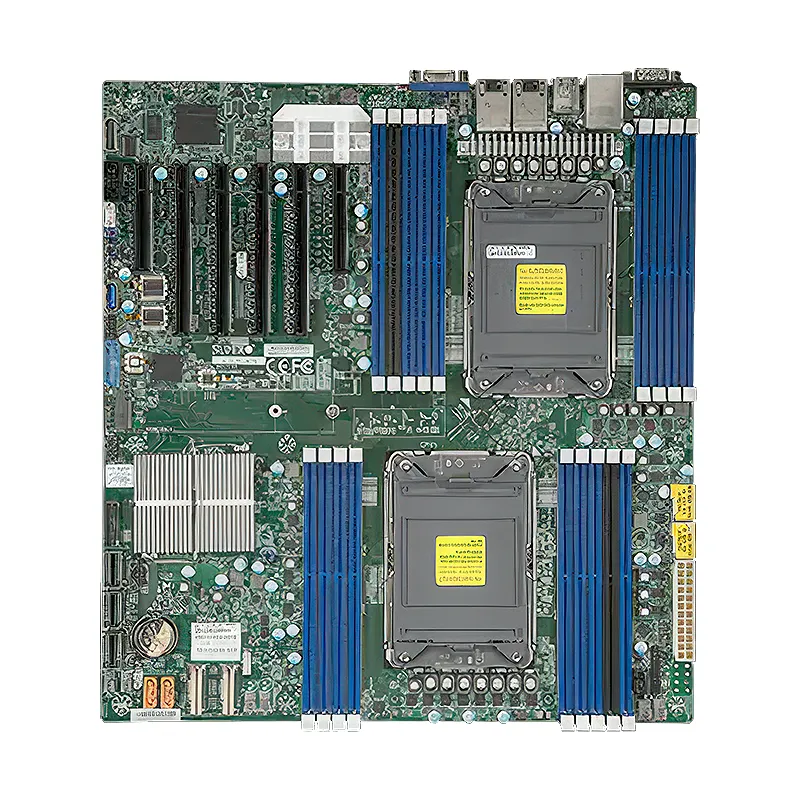

* NOTE: Image may not exactly match the product

Supermicro MBD-X12DPI-N6-B Server Motherboard

MBD-X12DPI-N6-B,E-ATX,Intel?C621A,LGA4189(Socket P+),2*USB 2.0+7*USB 3.0

$Quote3 pcs(MOQ)

SKU MBD-X12DPi-N6−B Categories , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Product SKUs
MBD-X12DPi-N6
Physical Stats
Form Factor
  • E-ATX
Dimension
  • 12″ x 13″ (30.48cm x 33.02cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
  • Up to 40 cores
System Memory
Memory Capacity
  • 18 DIMM slots
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s
  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s
  • P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type
  • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 256GB
  • RDIMM: 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with Intel® i350 Gigabit Ethernet Controller
Input / Output
SATA
  • 14 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Video Output
  • 2 VGA (1 rear bezel, 1 front panel) port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 4 PCIe 4.0 x16,
  • 2 PCIe 4.0 x8
M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Redfish API
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • KVM with dedicated LAN
  • IPMI 2.0
System Management Software
  • SuperDoctor 5
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • IPMICFG
  • IPMIView for Linux/Windows
  • SMCIPMITool
  • SSM
  • SUM
  • SPM
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
On-Board Devices
Voltage
  • VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
Other Features
  • WOL, UID, RoHS, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, SDDC, RoT, NCSI header
Operating Environment
Operating Temperature Range
  • 10°C – 35°C (50°F – 95°F)
Non-Operating Temperature Range
  • -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range
  • 8% – 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% – 95% (non-condensing)
Product Name

Supermicro MBD-X12DPI-N6-B Server Motherboard
Application

Server
Brand

Supermicro
Packaging Details

BOX
Chipset

IntelC621A
USB

2*USB 2.0+7*USB 3.0
Warranty

1 Year
Platform

Intel
Products Status

New
Socket

LGA4189(Socket P+)
P/N

MBD-X12DPI-N6-B
Form Factor

E-ATX
Feature

The Supermicro MBD-X12DPI-N6-B is a robust dual-socket server motherboard designed for performance-driven enterprise applications. It supports Intel's 3rd Gen Xeon Scalable processors, providing high computational power for data-intensive tasks. With up to 4TB of DDR4 ECC memory across 16 DIMM slots, this motherboard is optimized for memory-intensive workloads such as virtualization, AI, and big data analytics. Featuring PCIe 4.0 slots for high-speed expansion and NVMe, SATA, and SAS storage support, it offers flexibility for diverse storage needs. The MBD-X12DPI-N6-B also includes IPMI for efficient remote management, making it ideal for enterprise servers requiring high performance, scalability, and reliability.
