Product SKUs

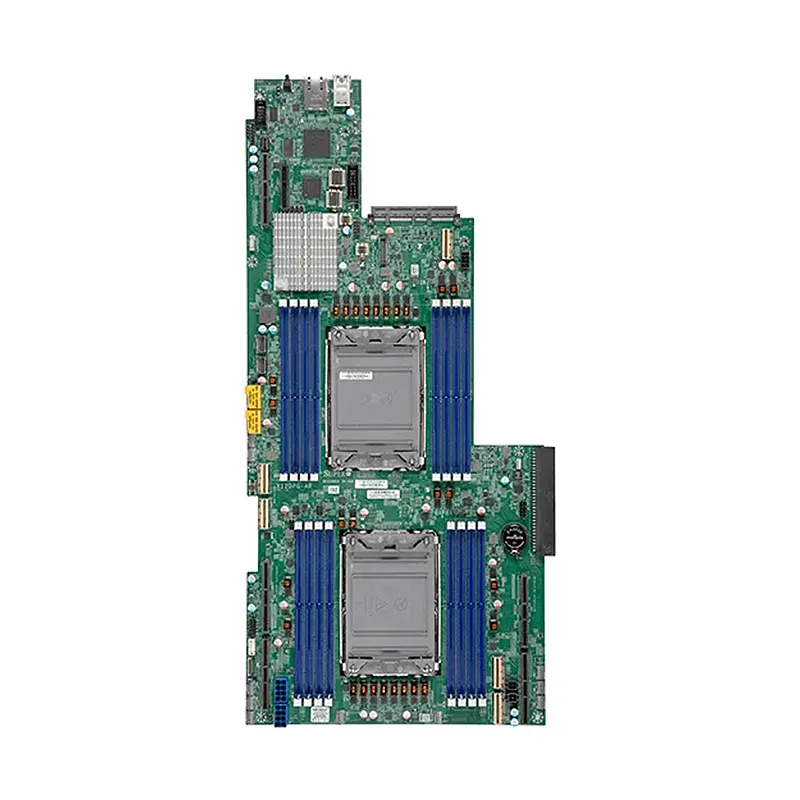

- MBD-X12DPG-AR
Physical Stats
- Form Factor
Proprietary
- Dimension
9.15″ x 19.8″ (23.24cm x 50.29cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s - Core
Up to 40 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s; Up to 6TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Input / Output
- USB
2 USB 3.2 Gen2 port(s) (2 rear)
- Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 rear)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x8 AIOM,
2 PCIe 4.0 x8,
6 PCIe 4.0 x16 - M.2
M.2 Interface: 2 PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
M.2 supported through M.2 carrier board
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
ACPI / ACPM Power Management
