Product SKUs

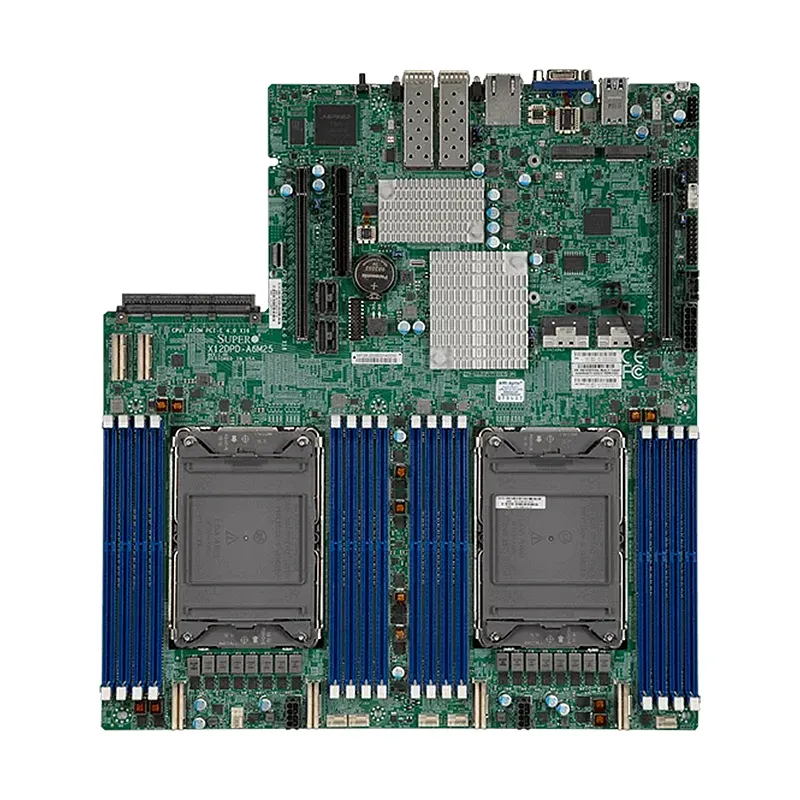

- MBD-X12DPD-A6M25
Physical Stats
- Form Factor
Proprietary
- Dimension
12″ x 13″ (30.48cm x 33.02cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP - Core
Up to 40 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
- DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Graphics
1 ASPEED AST2600 BMC port(s)
- Network Controllers
Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN
Input / Output
- USB
4 USB 3.1 Gen2 port(s) (2 via header; 2 rear)
- Video Output
1 VGA D-Sub Connector port(s)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x16, AIOM superset of OCP 3.0 Ethernet,
3 PCIe 4.0 x16 (in x16 slot) - M.2
M.2 Interface: 2 PCIe 3.0 x2, RAID 0 & 1
Form Factor: 2242/2280
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
