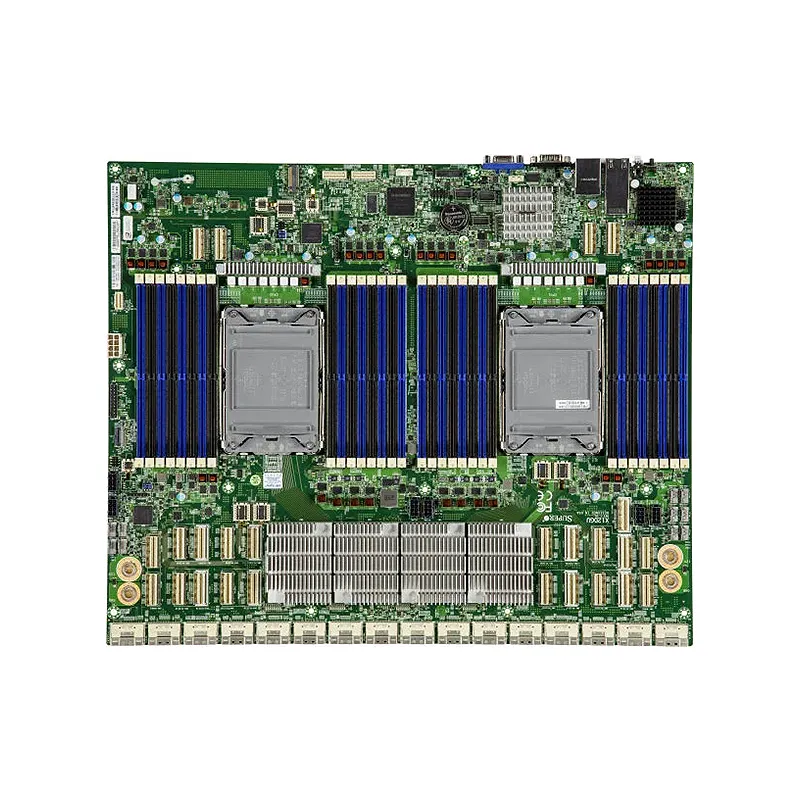

Supermicro MBD-X12DGU

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores

System Memory

Memory Capacity
32 DIMM slots
Up to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s
Up to 8TB Intel Optane Persistent Memory in memory mode.
Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management, Power supply monitoring

TPM	1 TPM Header
Network Controllers	Dual LAN with 10Gbase-T
M.2	M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C621A
DIMM Sizes	128GB, 16GB, 256GB, 32GB, 64GB, 8GB
BIOS Type	AMI UEFI
Video Output	1 VGA port(s)
Dimension	14.29" x 10.9" (17.32cm x 27.69cm)
PCIe	25 PCIe 4.0 x8
USB	2 USB 3.1 Gen1 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Serial Port	1 COM Port(s) (1 Serial Port)
SATA	12 SATA3 (6Gbps) port(s)
Memory Capacity	32 DIMM slotsUp to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/sUp to 8TB 3DS ECC LRDIMM, DDR4-3200MT/sUp to 8TB Intel Optane Persistent Memory in memory mode.
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 40 cores
