Product SKUs

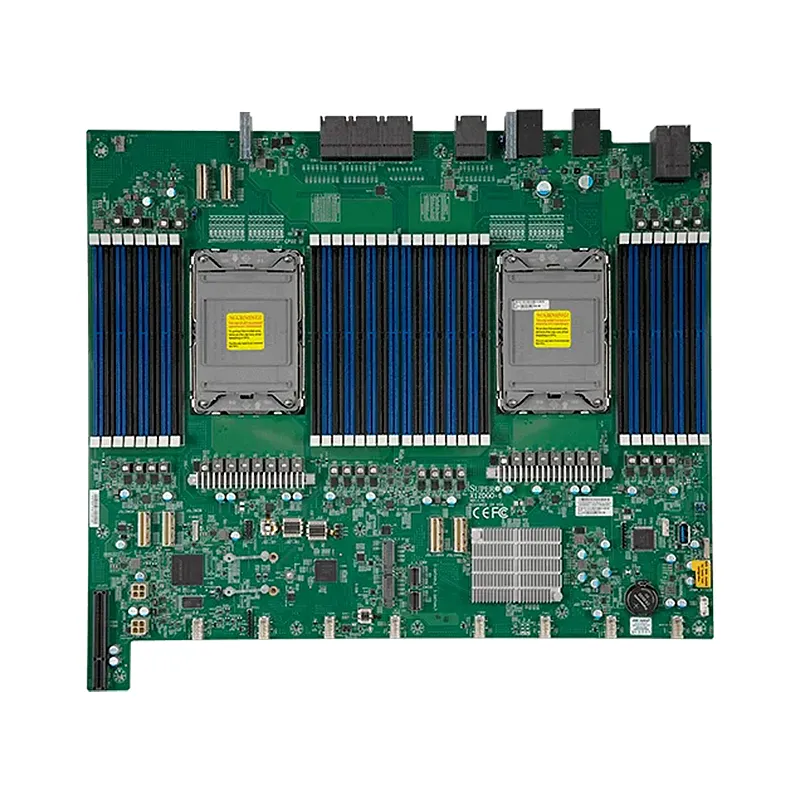

- MBD-X12DGO-6
Physical Stats
- Form Factor
Proprietary
- Dimension
15.09″ x 16.85″ (38.33cm x 42.8cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s - Core
Up to 40 cores
System Memory
- Memory Capacity
32 DIMM slots
Up to 8TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s - Memory Type
ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Input / Output
- SATA
8 SATA3 (6Gbps) port(s)
- USB
3 USB 3.2 Gen2 port(s) (2 type A; 1 via header)
3 USB 3.1 Gen2 port(s) (2 type A; 1 via header) - Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
3 PCIe 4.0 x16
- M.2
M.2 Interface: 2 PCIe 4.0 x4
Form Factor: 2280/22110
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
ACPI Power Management, Power supply monitoring
