Product SKUs

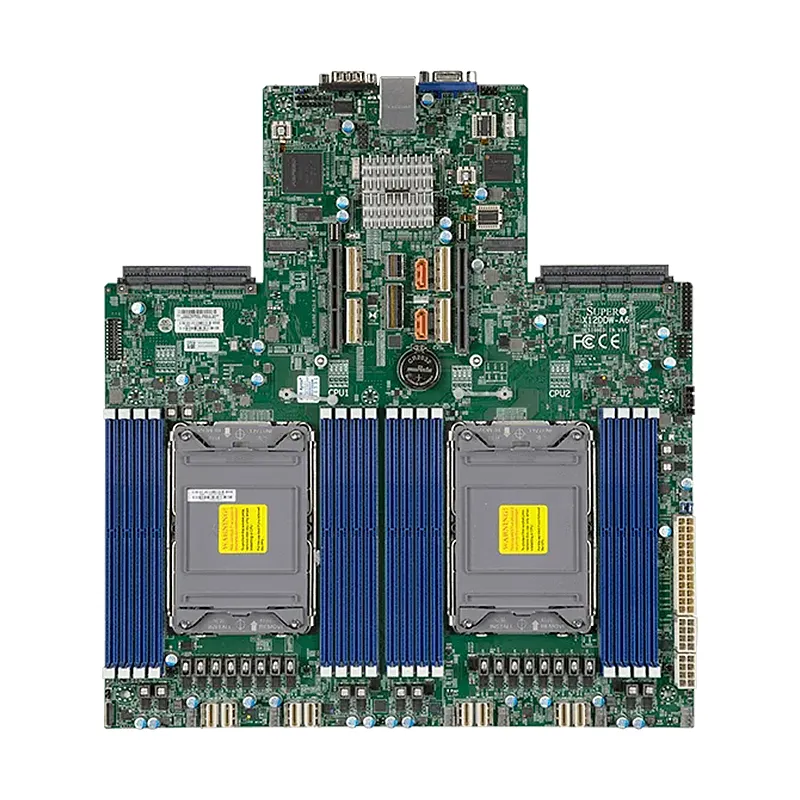

- MBD-X12DDW-A6
Physical Stats
- Form Factor
Proprietary WIO
- Dimension
12.288″ x 13.404″ (31.21cm x 34.05cm)
Processor
- CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s - Core
Up to 40 cores
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s - Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
- DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621A
- SATA
Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2600 BMC
- Graphics
1 ASPEED AST2600 BMC port(s)
- Network Controllers
AIOM for LAN
Input / Output
- USB
4 USB 3.1 Gen1 port(s) (2 via header; 2 rear)
- Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 4.0 x16 Left Riser Slot,
1 PCIe 4.0 x16 Right Riser Slot,
2 PCIe 4.0 x16 Center Right Hand Slot,
2 PCIe 4.0 x16, AIOM slots Superset of OCP 3.0 Expansion - M.2
M.2 Interface: 2 PCIe 3.0 x2
Form Factor: 2260/2280
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
ATX Power connector
