Product SKUs

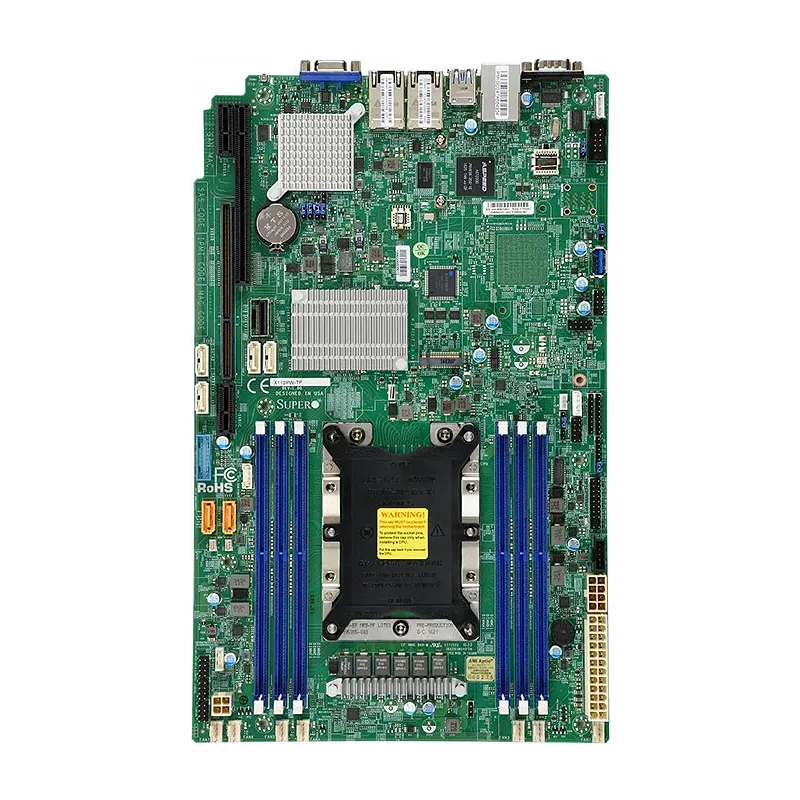

- MBD-X11SPW-TF
Physical Stats
- Form Factor
Proprietary WIO
- Dimension
8″ x 13″ (20.32cm x 33.02cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Single Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP - Core
Up to 28 cores
System Memory
- Memory Capacity
6 DIMM slots
Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/s - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 32GB, 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C622
- SATA
Intel C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN with 10GBase-T with Intel X722 + X557
Input / Output
- SATA
10 SATA3 (6Gbps) port(s)
- LAN
2 RJ45 10GBase-T ports
- USB
7 USB 2.0 port(s) (2 rear; 5 via header)
2 USB 3.0 port(s) (2 rear)
3 USB 3 port(s) (2 via header; 1 type A) - Video Output
1 VGA port(s)
- Serial Port
2 COM Port(s) (1 header; 1 rear)
- DOM
2 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x8 (in x16 slot),
1 PCIe 3.0 x32 Left Riser Slot - M.2
M.2 Interface: PCIe 3.0 x4; SATA
Form Factor: 2280, 22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
- BIOS Features
ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or later
Management
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
