| BIOS Features | ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later |
|---|---|
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 10GBase-T with Intel X722 + X557 |
| M.2 | 22110Key: M-Key, M.2 Interface: PCIe 3.0 x4; SATAForm Factor: 2280 |
| Chipset | Intel C622 |
| DIMM Sizes | 128GBRDIMM: 8GB, 16GB, 32GB, 64GB, LRDIMM: 32GB |
| BIOS Type | AMI UEFI |
| LAN | 2 RJ45 10GBase-T ports |
| Video Output | 1 VGA port(s) |
| DOM | DOM |
| Dimension | 8" x 13" (20.32cm x 33.02cm) |
| PCIe | 1 PCIe 3.0 x32 Left Riser Slot, 1 PCIe 3.0 x8 (in x16 slot) |
| USB | 7 USB 2.0 port(s) (2 rear; 5 via header)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A) |
| Form Factor | Proprietary WIO |
| Memory Type | 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| Application | Server |
| IPMI | ASPEED AST2500 |
| Memory Voltage | 1.2V |
| CPU | 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsSingle Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP |
| SAS | 4 SAS port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 10 SATA3 (6Gbps) port(s) |
| Memory Capacity | 6 DIMM slotsUp to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM |
| Error Detection | Corrects single-bit errors |
| Core | Up to 28 cores |
* NOTE: Image may not exactly match the product

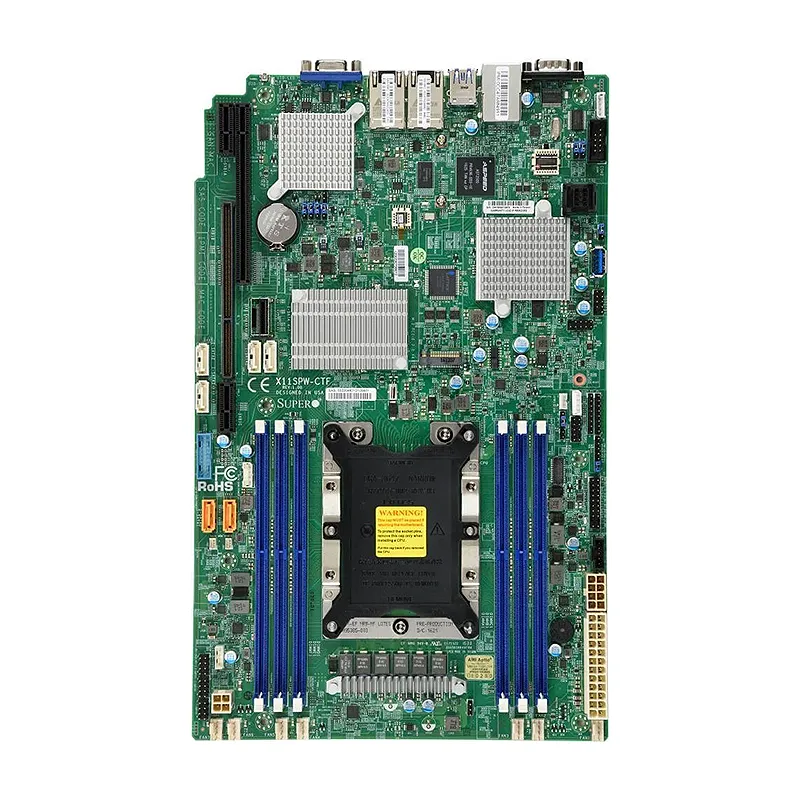

Supermicro MBD-X11SPW-CTF
