| BIOS Features | ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later |
|---|---|
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 1GbE with Intel X722 + Marvell 88E1512 |
| M.2 | 2242Key: M-Key, M.2 Interface: PCIe 3.0 x4Form Factor: 2280 |
| Chipset | Intel C621 |
| DIMM Sizes | 128GBRDIMM: 8GB, 16GB, 32GB, 64GB, LRDIMM: 32GB |
| BIOS Type | AMI UEFI |
| LAN | 2 1GbE LAN ports |
| Video Output | 1 VGA port(s) |
| DOM | DOM |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| PCIe | 1 PCIe 3.0 x8, 2 PCIe 3.0 x16 |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A) |
| Form Factor | Micro-ATX |
| Memory Type | 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) |
| Application | Server |
| IPMI | ASPEED AST2500 |
| Memory Voltage | 1.2V |
| CPU | 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsSingle Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 12 SATA3 (6Gbps) port(s) |
| Memory Capacity | 6 DIMM slotsUp to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only) |
| Error Detection | Corrects single-bit errors |
| Core | Up to 28 cores |

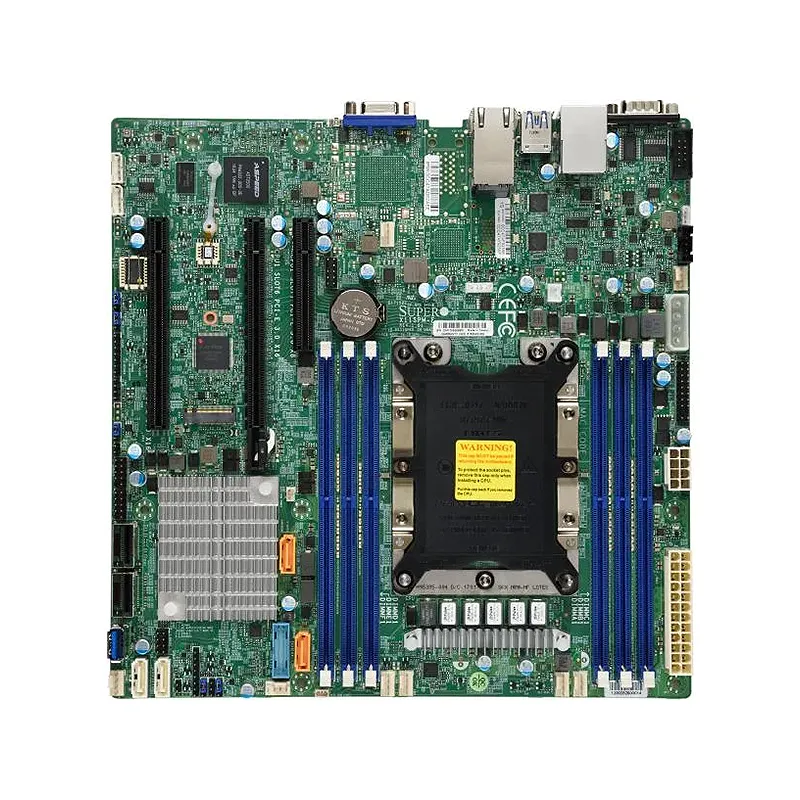

* NOTE: Image may not exactly match the product
Supermicro MBD-X11SPM-F
$Quote1 Piece(MOQ)
100% New and Genuine
