Product SKUs

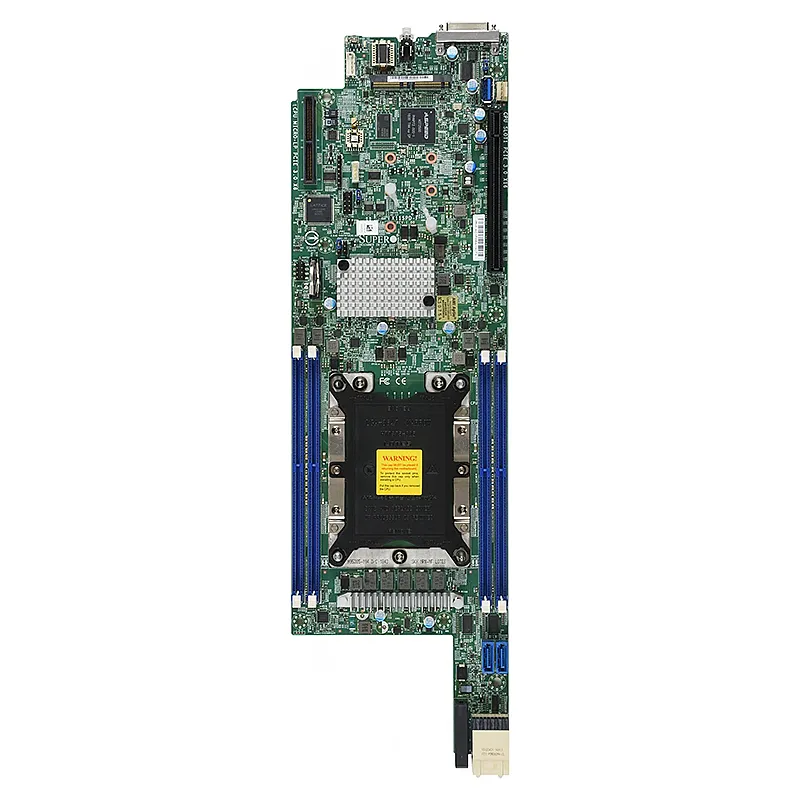

- MBD-X11SPD-F
Physical Stats
- Form Factor
Proprietary
- Dimension
4.66″ x 18.5″ (11.84cm x 46.99cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP - Core
Up to 24 cores
System Memory
- Memory Capacity
4 DIMM slots
Up to 512GB ECC LRDIMM, DDR4-2933MT/s; Up to 1TB 3DS ECC RDIMM, DDR4-2933MT/s - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (3DS)
- DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB
LRDIMM: 32GB, 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 2 SATA3 (6 Gbps) ports
- IPMI
ASPEED AST2500
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Graphics
1 ASPEED AST2500 BMC port(s)
Via KVM Connector - Network Controllers
Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane
Input / Output
- SATA
2 SATA3 (6Gbps) port(s)
- LAN
1 RJ45 Dedicated IPMI LAN port
- USB
2 USB 2.0 port(s) (2 rear)
USB 2.0 via KVM Connector - Video Output
1 VGA port(s)
- Serial Port
1 fast UART 16550 Serial
1 COM Port(s) (1 rear), Via KVM Connector - TPM
1 TPM Header
- Others
1 KVM Connector for VGA
1 USB 0 and COM Ports
Expansion Slots
- PCIe
1 PCIe 3.0 x8 (Micro Low Profile),
1 PCIe 3.0 x16 - M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
256MB UEFI
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SUM
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss
