Product SKUs

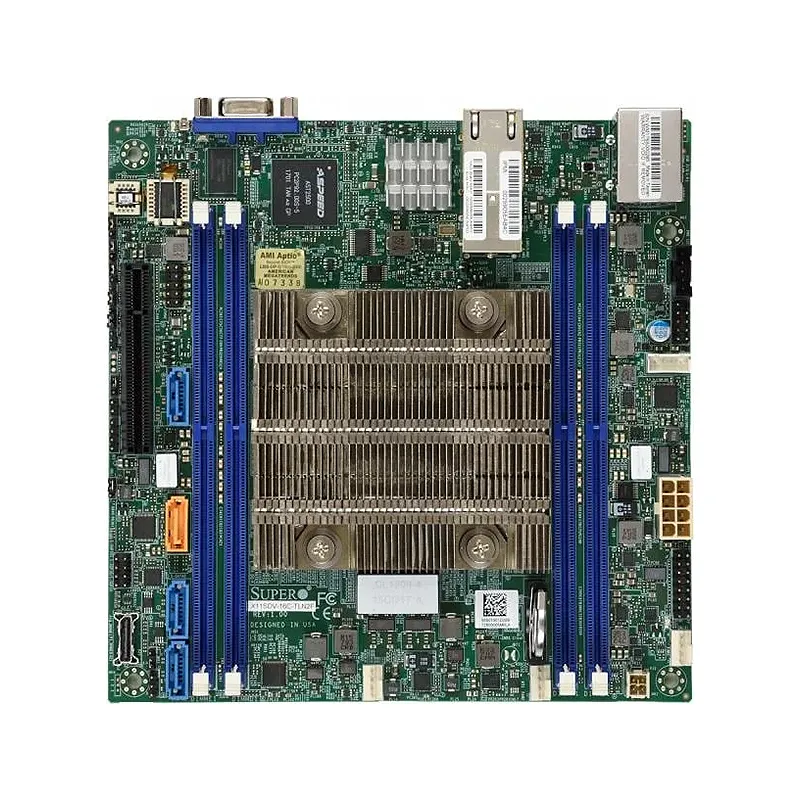

- MBD-X11SDV-8C-TLN2F
Physical Stats
- Form Factor
Mini-ITX
- Dimension
6.75″ x 6.75″ (17.15cm x 17.15cm)
Processor
- CPU
Intel Xeon Processor D-2141I
Single Socket FCBGA-2518 supported, CPU TDP supports Up to 65W TDP - Core
Up to 8 cores, 16 threads / 11MB Cache
System Memory
- Memory Capacity
4 DIMM slots
Up to 512GB ECC LRDIMM, DDR4-2133MT/s; Up to 256GB ECC RDIMM, DDR4-2133MT/s - Memory Type
2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz)
- DIMM Sizes
LRDIMM: 16GB, 32GB, 64GB, 128GB
RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- SATA
SoC controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN with 10Gbase-T
Input / Output
- LAN
1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T ports - USB
2 USB 2.0 port(s) (2 via header)
2 USB 3.0 port(s) (2 rear) - Video Output
1 VGA port(s)
- DOM
1 SATA DOM (Disk on Module) power connector support
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x8
1 PCIe 3.0 x4 NVMe Internal Port via OCuLink
System BIOS
- BIOS Type
AMI UEFI
- BIOS Features
ACPI 6.1
SMBIOS 3.1
UEFI 2.6
PCI FW 3.2
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
ACPI Power Management, +12V DC Power Input
