| BIOS Features | ACPI 6.0SMBIOS 2.7Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0 |
|---|---|
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Intel Ethernet Controller I210-AT |
| M.2 | M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4Form Factor: 2260/2280/22110Key: M-Key |
| Chipset | Intel C246 |
| DIMM Sizes | 16GB, 32GB, 4GB, 8GB |
| BIOS Type | 256MB UEFI |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| Video Output | 1 VGA port(s) |
| Dimension | 8" x 13" (20.32cm x 33.02cm) |
| PCIe | 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot) |
| USB | 4 USB 3.1 Gen2 port(s) (2 via header; 2 rear)6 USB 2.0 port(s) (4 via header; 2 rear)1 USB 3.1 Gen1 port(s) (1 type A) |
| Form Factor | Proprietary WIO |
| Memory Type | 2666/2400/2133 MT/s SDRAM 72-bit |
| Application | Server |
| IPMI | ASPEED AST2500 |
| Memory Voltage | 1.2V |
| CPU | 8th/9th Generation Intel Core i3/Pentium/Celeron Processor, CPU TDP supports Up to 95W TDP, Intel Xeon E-2100 Processor, Intel Xeon E-2200 ProcessorSingle Socket Socket H4 (LGA-1151) supported |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 6 SATA3 (6Gbps) port(s) |
| Memory Capacity | 4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s |
| Error Detection | Corrects single-bit errors |
| Core | 16 threads, Up to 8 cores |
* NOTE: Image may not exactly match the product

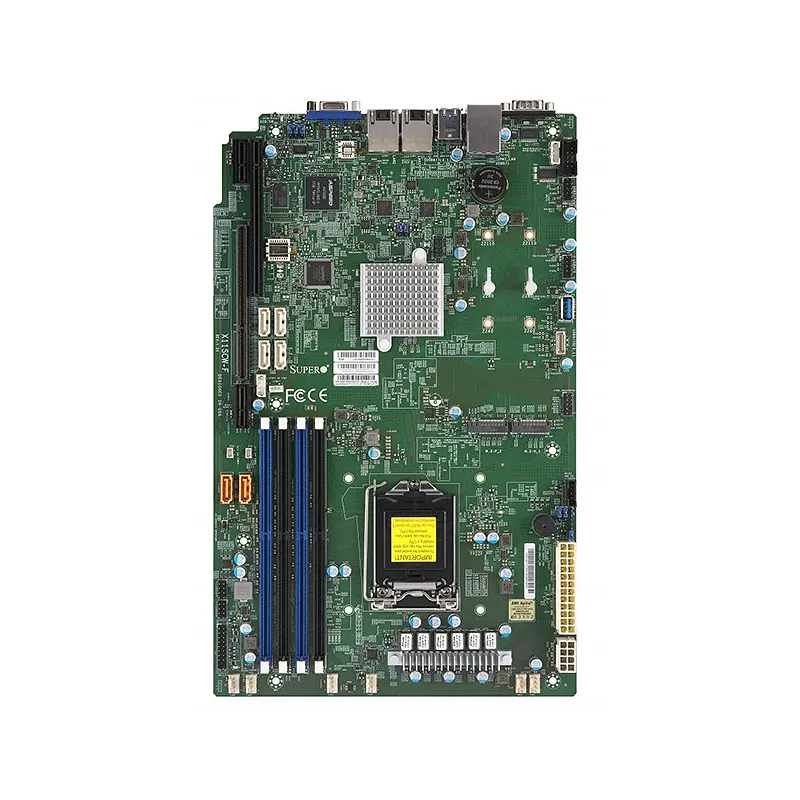

Supermicro MBD-X11SCW-F
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Submit Inquiry
Buy more, save more. Contact us for exclusive discounts!
