Product SKUs

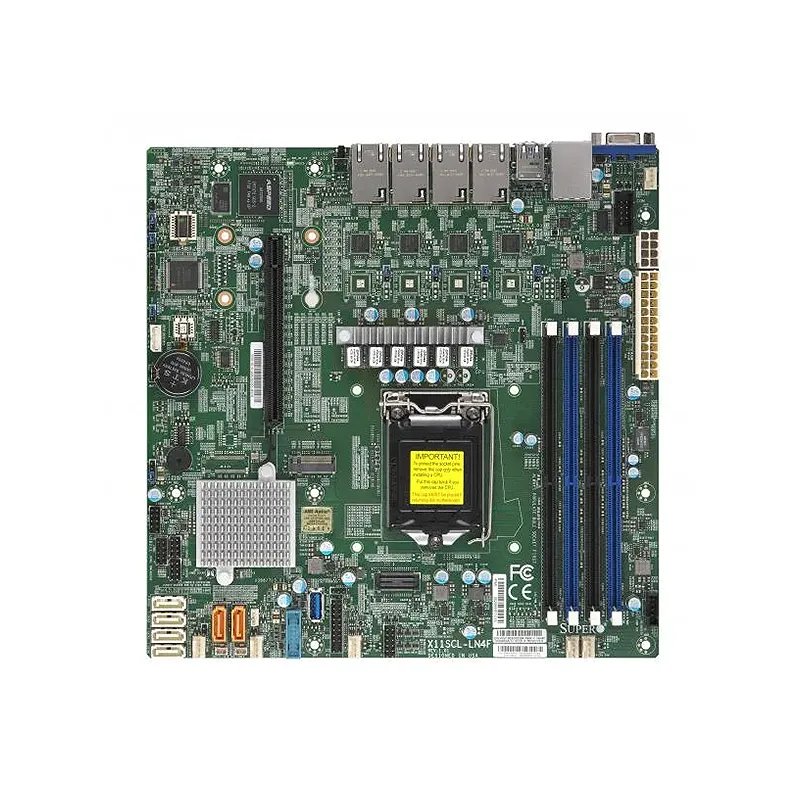

- MBD-X11SCL-LN4F
Physical Stats
- Form Factor
microATX
- Dimension
9.6″ x 9.6″ (24.38cm x 24.38cm)
Processor
- CPU
8th/9th Generation Intel Core i3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP - Core
Up to 8 cores, 16 threads
System Memory
- Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MT/s - Memory Type
2666/2400/2133 MT/s SDRAM 72-bit,
- DIMM Sizes
4GB, 8GB, 16GB, 32GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C242
- SATA
Intel C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Quad LAN with Intel Ethernet Controller I210-AT
Input / Output
- SATA
6 SATA3 (6Gbps) port(s)
- LAN
4 RJ45 Gigabit Ethernet LAN ports
- USB
4 USB 2.0 port(s) (2 via header; 2 rear)
5 USB 3.2 Gen2 port(s) (2 via header; 2 rear; 1 type A) - Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x16
- M.2
M.2 Interface: 1 PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
256MB UEFI
- BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
ACPI Power Management
