Product SKUs

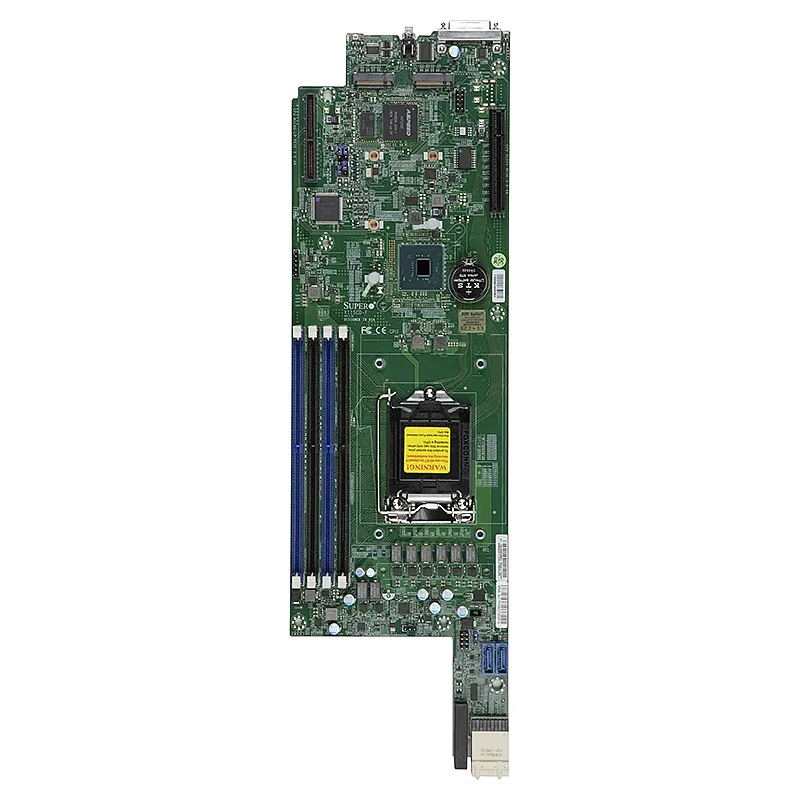

- MBD-X11SCD-F
Physical Stats
- Form Factor
Proprietary
- Dimension
4.66″ x 18.5″ (11.84cm x 46.99cm)
Processor
- CPU
Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor, Intel Celeron, Intel Pentium, Intel Core i3 series
Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP
System Memory
- Memory Capacity
4 DIMM slots
128GB Unbuffered ECC UDIMM, DDR4-2666MT/s - Memory Type
- DIMM Sizes
4GB, 8GB, 16GB, 32GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C246
- SATA
Intel C246 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Graphics
1 ASPEED AST2500 BMC port(s)
Via KVM Connector - Network Controllers
Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane
Input / Output
- LAN
1 RJ45 Dedicated IPMI LAN port
- USB
2 USB 2.0 port(s) (2 rear)
USB 2.0 via KVM Connector - Video Output
1 VGA port(s)
- Serial Port
1 fast UART 16550 Serial
1 COM Port(s) (1 rear), Via KVM Connector - TPM
1 TPM Header
- Others
1 KVM Connector for VGA
1 USB 0 and COM Ports
Expansion Slots
- PCIe
1 PCIe 3.0 x8 (Micro Low Profile),
1 PCIe 3.0 x8 - M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4
Form Factor: 2242/2280, 2242/2280/22110
Key: M-Key, M-Key
System BIOS
- BIOS Type
256MB UEFI
- BIOS Features
ACPI 6.2
SMBIOS 3.0 or later
PCI FW 3.2
USB Keyboard support
Plug and Play (PnP)
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SUM
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss
