Product SKUs

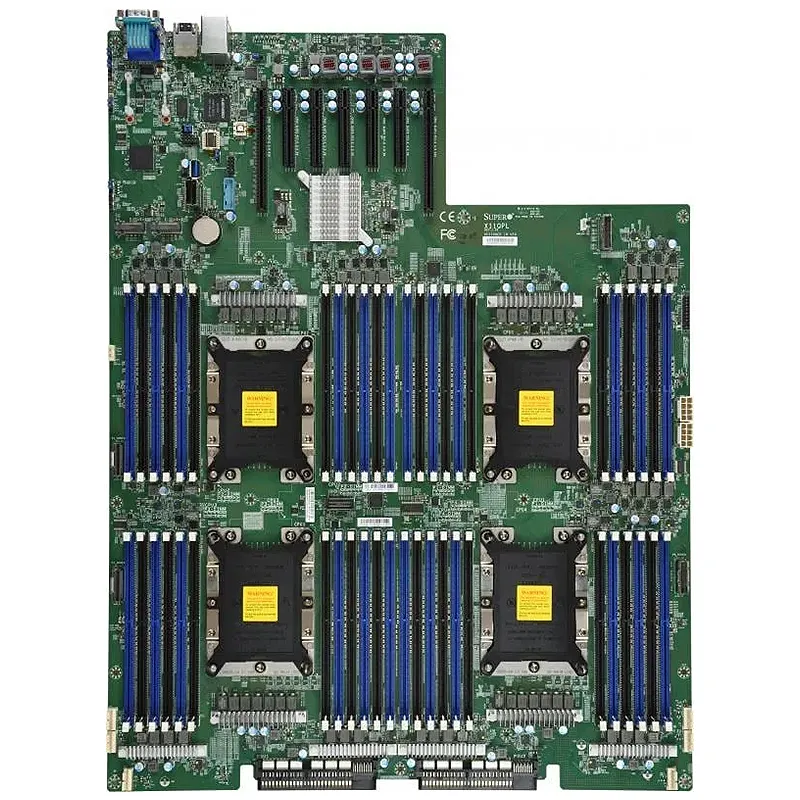

- MBD-X11QPL
Physical Stats
- Form Factor
Proprietary
- Dimension
16.8″ x 23.35″ (42.67cm x 59.31cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
System Memory
- Memory Capacity
48 DIMM slots
Up to 12TB 3DS Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 12TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 12TB 3DS ECC RDIMM, DDR4-2933MT/s - Memory Type
ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
16GB, 32GB, 64GB, 128GB
LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.35V
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
- IPMI
ASPEED AST2500
- Network Controllers
Single LAN with GbE from C621
Input / Output
- SATA
2 SATA3 (6Gbps) port(s)
- USB
1 USB 3.2 Gen1 port(s) (1 via header)
- Video Output
1 VGA port(s)
- TPM
1 TPM Header
Expansion Slots
- PCIe
5 PCIe 3.0 x8,
2 PCIe 3.0 x16 - M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
