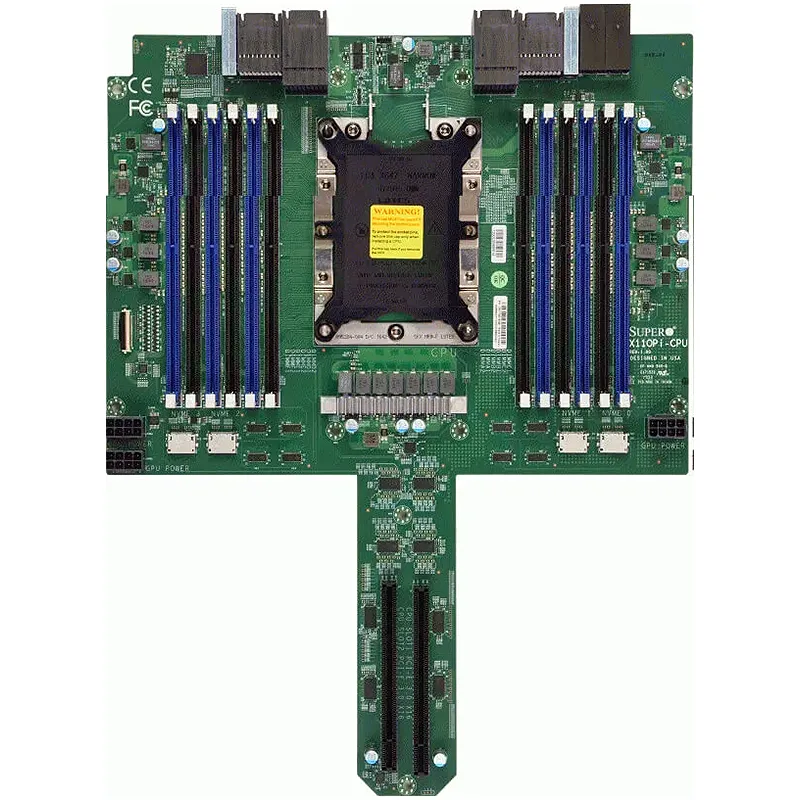

Supermicro MBD-X11OPi-CPU

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
8 Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
12 DIMM slots
Up to 3TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
Maximum System Capacity (8 CPU modules, 96 DIMM slots):Up to 24TB ECC DDR4 @ 2933 MHz RDIMM/LRDIMM,Up to 24TB Intel Optane DC Persistent Memory, Up to 36TB combined memory (DDR4and Optane DCPMM).
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 RDIMM (3DS)
DIMM Sizes
RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C621
SATA
Intel C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
(on Storage board)
IPMI
ASPEED AST2500
Graphics
1 ASPEED AST2500 BMC port(s)
(on PCH board)
Network Controllers
Quad LAN with Intel X550 10GBase-T Ethernet Controller, (on PCH board)

Input / Output

USB
2 USB 2.0 port(s) (2 via header)
1 USB 3.2 Gen1 port(s) (1 type A)
(on PCH board)
Video Output
1 VGA D-Sub Connector port(s)
Others
1 (TPM header on PCH board)

Expansion Slots

PCIe
2 PCIe 3.0 x16
M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4, RAID 0 & 1
Form Factor: 2260/2280/22110
(M.2 slots on PCH board)

System BIOS

Graphics	1 ASPEED AST2500 BMC port(s)(on PCH board)
Network Controllers	(on PCH board), Quad LAN with Intel X550 10GBase-T Ethernet Controller
M.2	M.2 Interface: 2 SATA/PCIe 3.0 x4, RAID 0 & 1Form Factor: 2260/2280/22110
Chipset	Intel C621
DIMM Sizes	128GB, 16GB, 256GB, 32GB, 64GB, RDIMM: 8GB
BIOS Type	AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	11" x 14.33" (27.94cm x 36.4cm)
PCIe	2 PCIe 3.0 x16
USB	2 USB 2.0 port(s) (2 via header)1 USB 3.2 Gen1 port(s) (1 type A)(on PCH board)
Form Factor	Proprietary
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Others	1 (TPM header on PCH board)
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors8 Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
SATA	1, 10(on Storage board), 5, Intel C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	12 DIMM slotsUp to 3TB Intel Optane Persistent Memory 100 Series, 96 DIMM slots):Up to 24TB ECC DDR4 @ 2933 MHz RDIMM/LRDIMM, DDR4-2666MT/sUp to 3TB 3DS ECC RDIMM, DDR4-2933MT/sMaximum System Capacity (8 CPU modules, Up to 24TB Intel Optane DC Persistent Memory, Up to 36TB combined memory (DDR4and Optane DCPMM).
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores
