Product SKUs

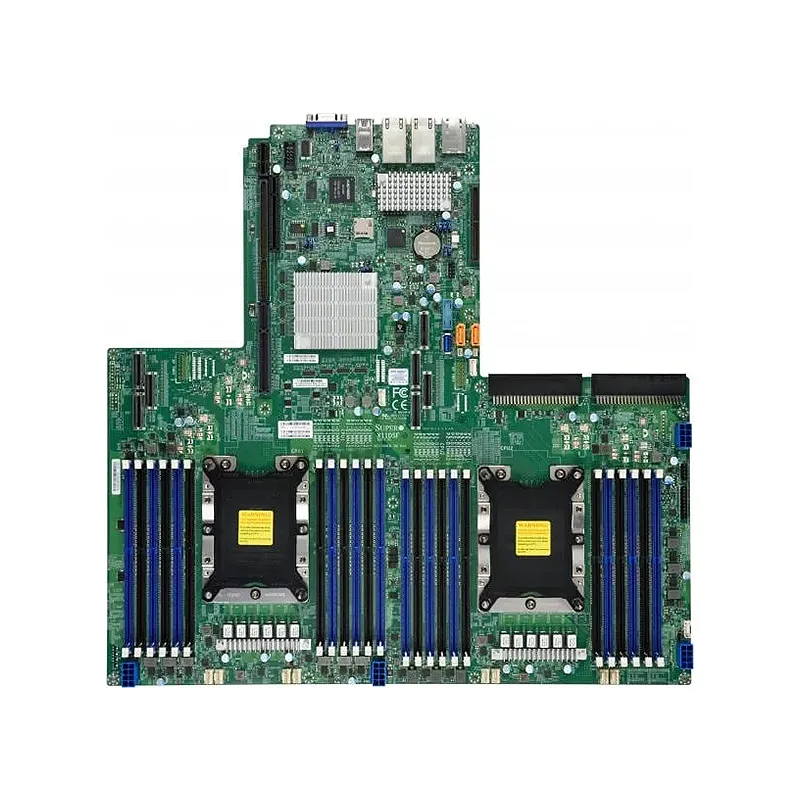

- MBD-X11DSF-E
Physical Stats
- Form Factor
Proprietary
- Dimension
16.337″ x 17″ (41.5cm x 43.18cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
System Memory
- Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only) - Memory Type
2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 64GB, 128GB
RDIMM: 32GB, 64GB, 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C627
- SATA
Intel C627 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Network Controllers
Dual LAN with 10GBase-T with Intel X550
Input / Output
- USB
3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
2 USB 3.0 port(s) (2 rear) - Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 header)
- DOM
2 Super DOM (Disk on Module) port with build power
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x32 Left Riser Slot,
2 PCIe 3.0 x4 (Low Profile),
4 PCIe 3.0 x16
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
