Product SKUs

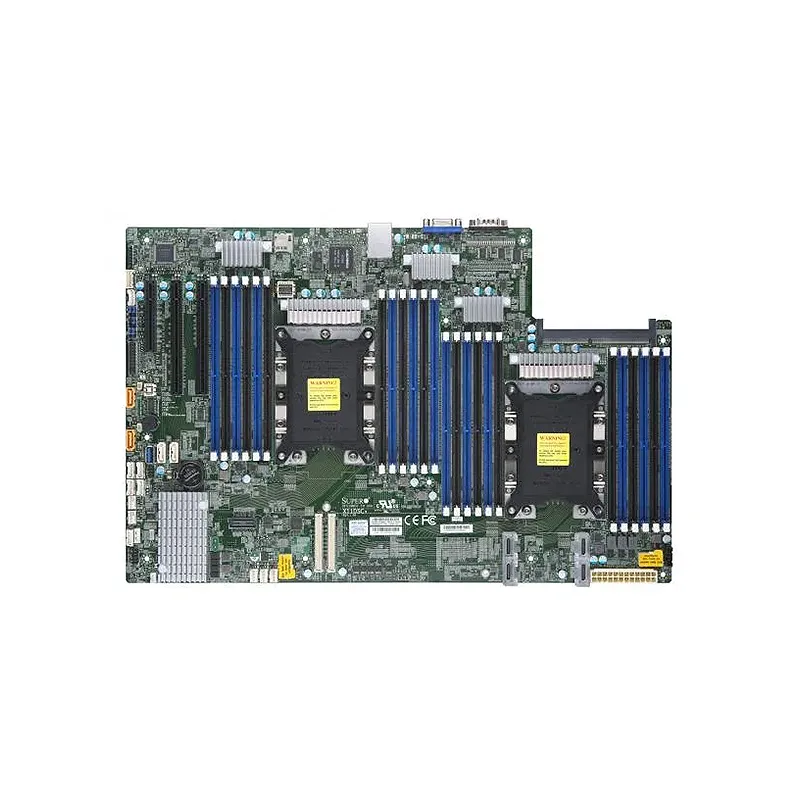

- MBD-X11DSC+
Physical Stats
- Form Factor
Proprietary
- Dimension
16.9″ x 11″ (42.93cm x 27.94cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s - Core
Up to 28 cores
System Memory
- Memory Capacity
24 DIMM slots
Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only). - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Input / Output
- LAN
2 Flexible LAN expansion via SIOM module
- USB
1 USB 3.2 Gen1 port(s) (1 type A)
2 USB 3.0 port(s) (2 rear) - Video Output
1 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 rear)
- DOM
2 Super DOM (Disk on Module) port with build power
- TPM
1 TPM Header
Expansion Slots
- PCIe
2 PCIe 3.0 x16,
1 PCIe 3.0 x8,
1 PCIe 3.0 x16 for Add-On-Module (AOM)
System BIOS
- BIOS Type
32MB AMI SPI Flash ROM
- BIOS Features
ACPI 6.0
Management
- Power Configurations
Power-on mode for AC power recovery, ACPI / ACPM Power Management
