Product SKUs

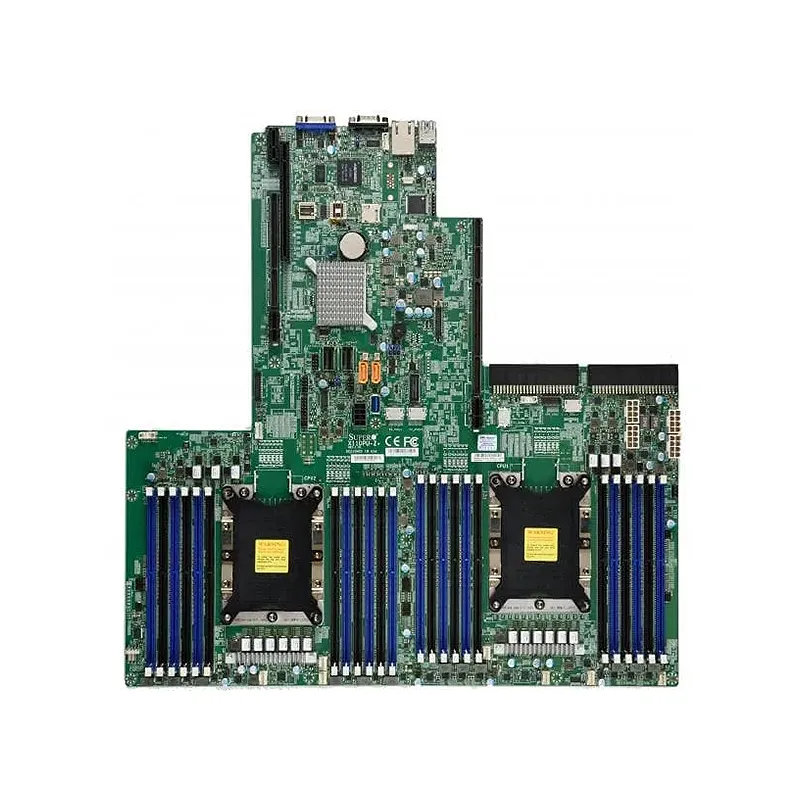

- MBD-X11DPU-Z+
Physical Stats
- Form Factor
Proprietary Ultra
- Dimension
17″ x 16.8″ (43.18cm x 42.67cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s - Core
Up to 28 cores
System Memory
- Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only). - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 64GB, 128GB
RDIMM: 64GB, 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Intel C621A controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10 - IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Networking options provided via Ultra Riser
Input / Output
- USB
1 USB 3.2 Gen1 port(s) (1 via header)
2 USB 3.0 port(s) (2 rear) - Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 rear)
- DOM
2 Super DOM (Disk on Module) ports
- TPM
1 TPM Header
- Others
1 ports SuperDOM
Expansion Slots
- PCIe
1 PCIe 3.0 x32 Left Riser Slot,
1 PCIe 3.0 x8 Right Riser Slot,
1 PCIe 3.0 x40 Far Right Riser Slot
System BIOS
- BIOS Type
AMI UEFI
Management
- Power Configurations
Power-on mode for AC power recovery, ACPI Power Management
