Product SKUs

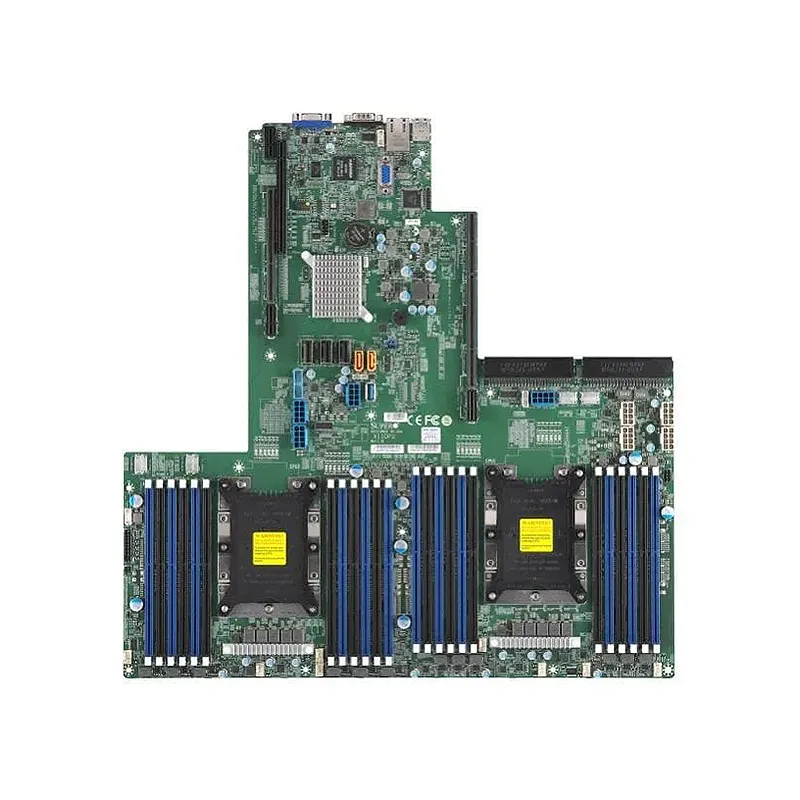

- MBD-X11DPU
Physical Stats
- Form Factor
Proprietary Ultra
- Dimension
17″ x 16.8″ (43.18cm x 42.67cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s - Core
Up to 28 cores / 38.5MB Cache
System Memory
- Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only). - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB, 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Support for Intelligent Platform Management Interface v.2.0 - Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Networking options provided via Ultra Riser
Input / Output
- SATA
14 SATA3 (6Gbps) port(s)
- USB
3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
2 USB 3.0 port(s) (2 rear) - Video Output
2 VGA D-Sub Connector port(s)
- Serial Port
1 COM Port(s) (1 rear)
- DOM
2 Super DOM (Disk on Module) port with build power
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x32 Right Riser Slot,
1 PCIe 3.0 x8 Right Riser Slot,
1 PCIe 3.0 x40 Ultra Riser Slot
System BIOS
- BIOS Type
32MB AMI SPI Flash ROM
Management
- System Management Software
SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM
- Power Configurations
ACPI Power Management
