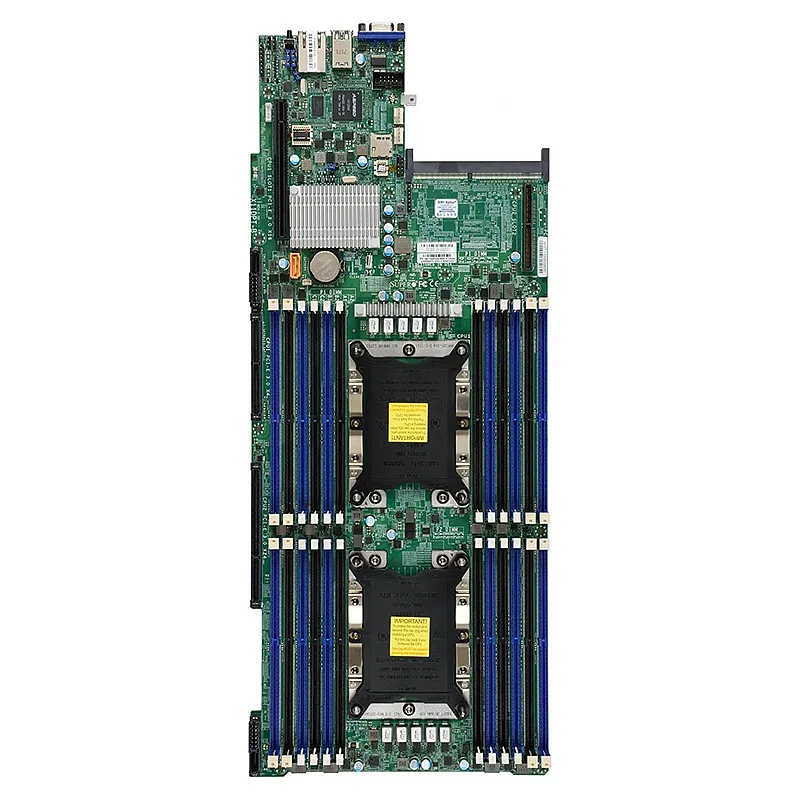

Supermicro MBD-X11DPT-B

* NOTE: Image may not exactly match the product

Supermicro MBD-X11DPT-B

$Quote1 Piece(MOQ)

SKU MBD-X11DPT-B Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-X11DPT-B

Physical Stats

  • Form Factor
    Proprietary Twin
  • Dimension
    7.62″ x 18.86″ (19.35cm x 47.9cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 6TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 64GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors
    Detects double-bit errors (using ECC memory)

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Single LAN, Networking options provided via SIOM module

Input / Output

  • SATA
    8 SATA3 (6Gbps) port(s)
  • USB
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA port(s)
  • DOM
    1 Super DOM (Disk on Module) power connector
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 3.0 x16 Left Riser Slot,
    1 PCIe 3.0 x16 Right Riser Slot
    1 PCIe 3.0 x24 Proprietary Slot (for Supermicro storage add-on card),
    1 PCIe 3.0 x16 SIOM LAN Networking Slot,
    1 PCIe 3.0 x8 Proprietary Slot (For M.2 add-on card)

System BIOS

  • BIOS Type
    AMI UEFI

Management

  • Power Configurations
    ACPI Power Management
Graphics

1 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header
Network Controllers

Networking options provided via SIOM module, Single LAN
Chipset

Intel C621
DIMM Sizes

LRDIMM: 64GBRDIMM: 64GB
BIOS Type

AMI UEFI
Video Output

1 VGA port(s)
DOM

DOM
Dimension

7.62" x 18.86" (19.35cm x 47.9cm)
PCIe

1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x16 Right Riser Slot1 PCIe 3.0 x24 Proprietary Slot (for Supermicro storage add-on card), 1 PCIe 3.0 x16 SIOM LAN Networking Slot, 1 PCIe 3.0 x8 Proprietary Slot (For M.2 add-on card)
USB

2 USB 3.0 port(s) (2 rear)
Form Factor

Proprietary Twin
Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
SATA

8 SATA3 (6Gbps) port(s)
Memory Capacity

24 DIMM slotsUp to 6TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection

Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core

Up to 28 cores
