Product SKUs

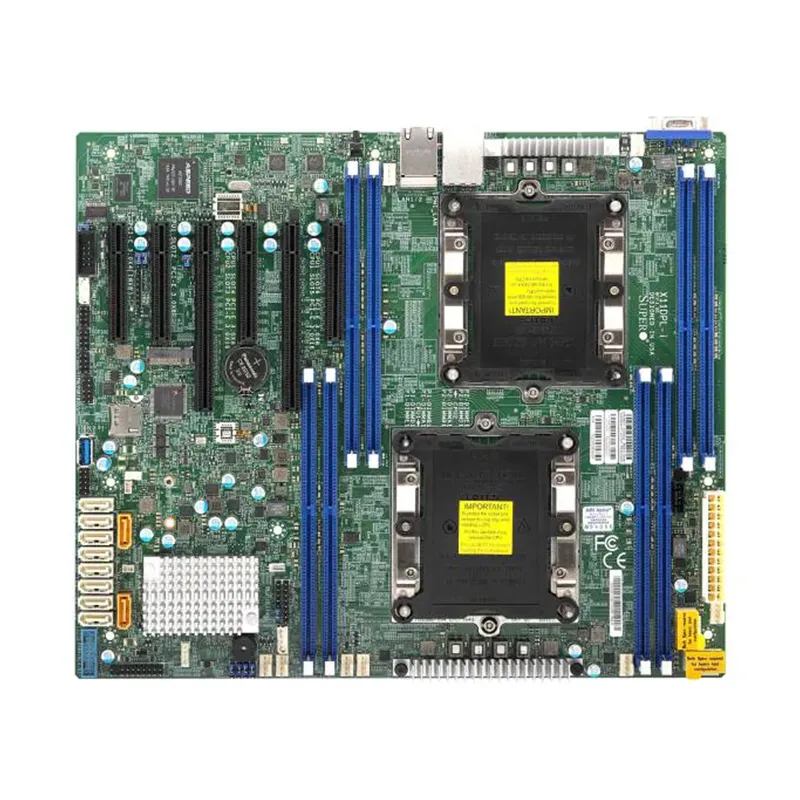

- MBD-X11DPL-I
Physical Stats
- Form Factor
ATX
- Dimension
12.076″ x 10.15″ (30.67cm x 25.78cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
System Memory
- Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN with 1GbE with Intel X722 + Marvell 88E1512
Input / Output
- SATA
10 SATA3 (6Gbps) port(s)
- LAN
2 RJ45 Gigabit Ethernet LAN ports
- USB
4 USB 2.0 port(s) (2 via header; 2 rear)
3 USB 3.2 Gen1 port(s) (2 via header; 1 type A) - Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 header)
- DOM
2 Super DOM (Disk on Module) ports
- TPM
1 TPM Header
Expansion Slots
- PCIe
2 PCIe 3.0 x16,
3 PCIe 3.0 x8,
1 PCIe 3.0 x4 (in x8 slot) - M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4
Form Factor: 2280, 2260
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
- Power Configurations
ACPI Power Management
