Product SKUs

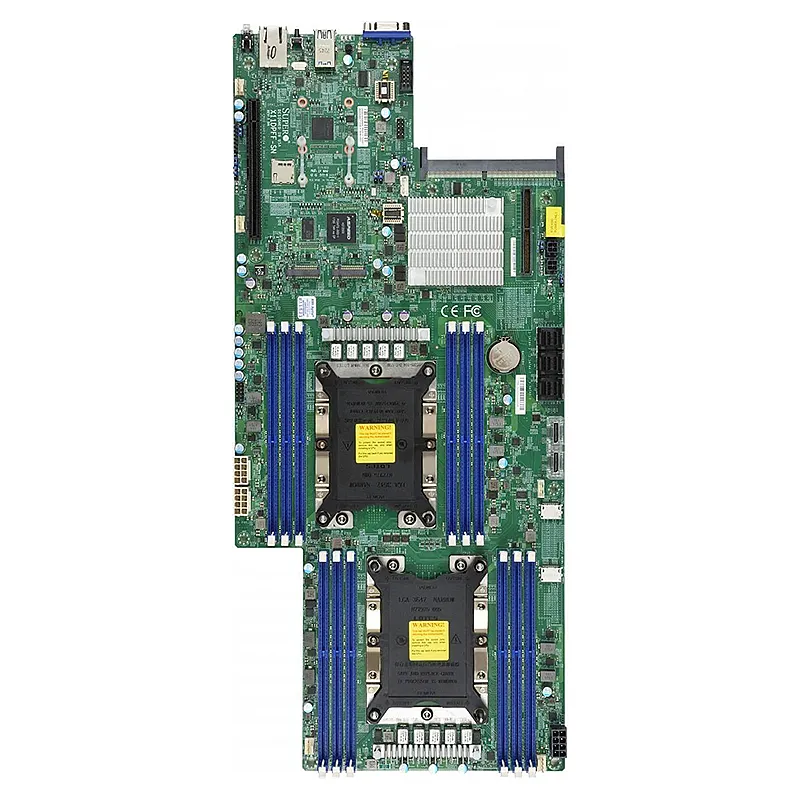

- MBD-X11DPFF-SN
Physical Stats
- Form Factor
Proprietary FatTwin
- Dimension
8.441″ x 18.724″ (21.44cm x 47.56cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP, Dual UPI up to 10.4 GT/s - Core
Up to 28 cores
System Memory
- Memory Capacity
12 DIMM slots
Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only) - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 64GB
RDIMM: 64GB - Memory Voltage
1.2V
- Error Detection
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Network Controllers
Single LAN, Networking options provided via SIOM module
Input / Output
- SATA
12 SATA3 (6Gbps) port(s)
- LAN
1 RJ45 Dedicated IPMI LAN port
- USB
2 USB 3.0 port(s) (2 rear)
- Video Output
1 VGA port(s)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x16 Left Riser Slot,
1 PCIe 3.0 x16 Right Riser Slot - M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4, RAID 0 & 1
Form Factor: 2260/2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
Management
- Power Configurations
ACPI Power Management
