Product SKUs

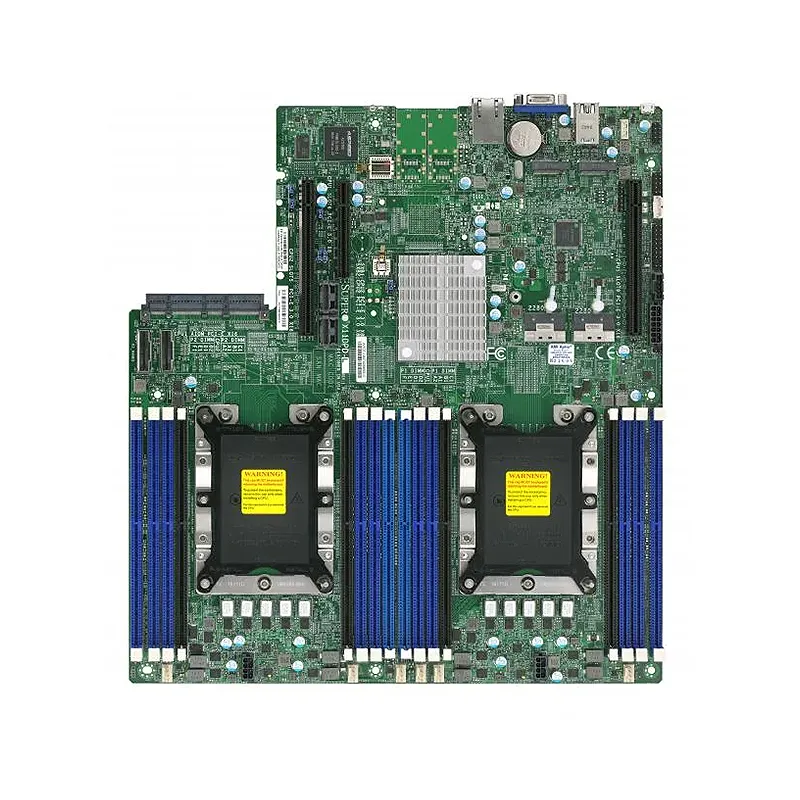

- MBD-X11DPD-L
Physical Stats
- Form Factor
E-ATX
- Dimension
12″ x 13″ (30.48cm x 33.02cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
System Memory
- Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 64GB, 128GB
RDIMM: 64GB, 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
DP version 1.4a, HDMI version 2.0b - Network Controllers
Input / Output
- USB
2 USB 2.0 port(s) (2 via header)
2 USB 3.0 port(s) (2 rear) - Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x16 (HBA Add-On-Module),
1 PCIe 3.0 x16 Left Riser Slot,
1 PCIe 3.0 x24 Right Riser Slot,
1 PCIe 3.0 x16 (Low Profile) - M.2
M.2 Interface: 1 PCIe 3.0 x4; 1 PCIe 3.0 x1
Form Factor: 2280
Key: M-Key
The CPU-attached M.2 slot is support with the Intel NVMe drives only (support RAID 0,1). PCH-attached M.2 slots can support either Intel optane memory with solid state or 3rd party NVMe SSD (support RAID 0,1); M.2-E1 port pre-installed one Intel Wi-Fi 6(802.11ax)+BT5.1 module
System BIOS
- BIOS Type
256MB UEFI
