Product SKUs

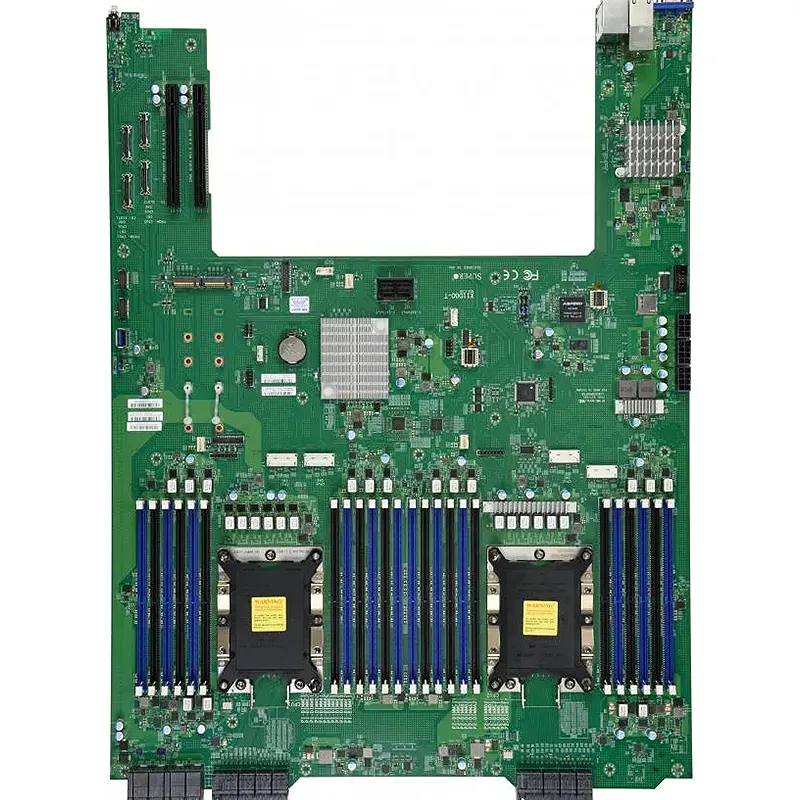

- MBD-X11DGO-T
Physical Stats
- Form Factor
Proprietary
- Dimension
22.78″ x 17″ (57.86cm x 43.18cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s - Core
Up to 28 cores
System Memory
- Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
(2933MHz in two DIMMs per channel supported on Rev 1.10 MB only)
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only) - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN with Intel X540 10GBase-T Ethernet Controller
Input / Output
- SATA
8 SATA3 (6Gbps) port(s)
- LAN
2 RJ45 10GBase-T ports
- USB
1 USB 3.2 Gen1 port(s) (1 type A)
2 USB 3.0 port(s) (2 rear) - Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 header)
- TPM
1 TPM Header
Expansion Slots
- PCIe
2 PCIe 3.0 x16
4 PCIe 3.0 x16 to midplane - M.2
M.2 Interface: 2 PCIe 3.0 x4
Form Factor: 2260/2280/22110
Key: M-Key
M.2 Type: NVMe
System BIOS
- BIOS Type
AMI UEFI
