Product SKUs

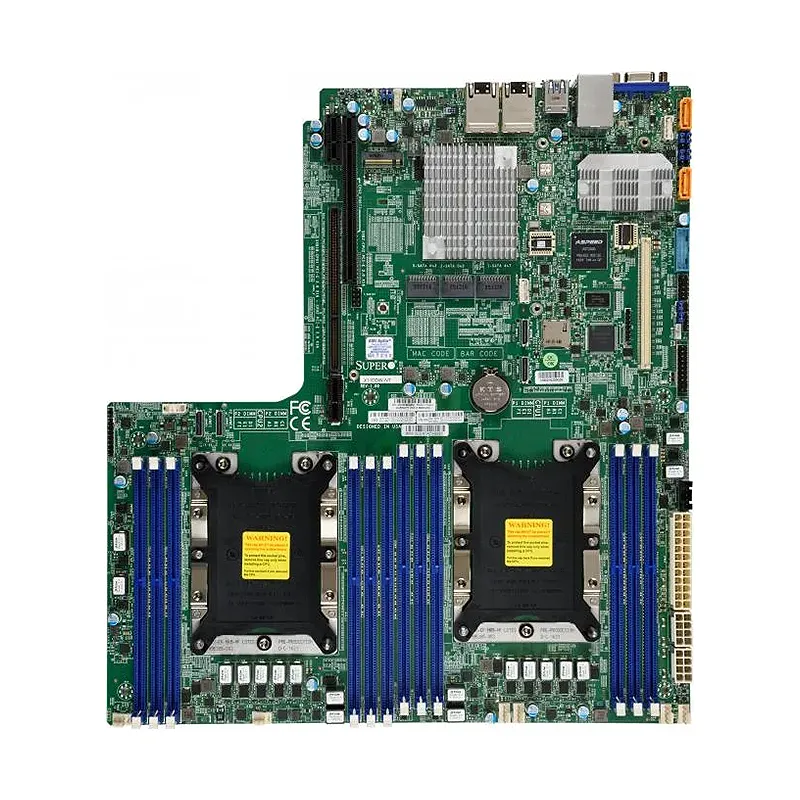

- MBD-X11DDW-NT
Physical Stats
- Form Factor
Proprietary WIO
- Dimension
12.3″ x 13.4″ (31.24cm x 34.04cm)
Processor
- CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
System Memory
- Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only). - Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
- DIMM Sizes
LRDIMM: 64GB, 128GB
RDIMM: 64GB, 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C622
- SATA
Intel C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Graphics
1 ASPEED AST2500 BMC port(s)
- Network Controllers
Dual LAN with 10Gbase-T, from C622
Input / Output
- LAN
2 RJ45 10GBase-T ports
- USB
6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
- Video Output
1 VGA port(s)
- DOM
2 Super DOM (Disk on Module) ports
- TPM
1 TPM Header
Expansion Slots
- PCIe
1 PCIe 3.0 x32 Left Riser Slot,
1 PCIe 3.0 x16 Right Riser Slot,
1 PCIe 3.0 x16 for Add-On-Module (AOM) - M.2
M.2 Interface: PCIe 3.0 x4
Form Factor: 22110, 2280, 2242, 2260
Key: M-Key
System BIOS
- BIOS Type
256MB UEFI
