Product SKUs
- MBD-X10SLE-F

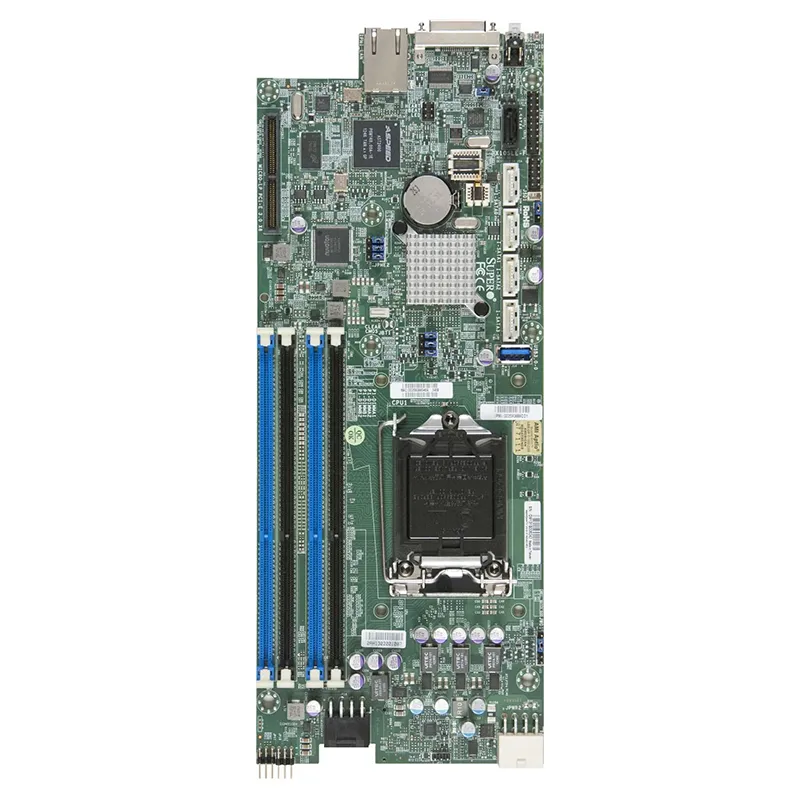

X10SLE-F
Physical Stats
- Form Factor
Proprietary
- Dimensions
4.6″ x 11.7″ (11.68cm x 29.72cm)
Processor/Cache
- CPU
Intel 4th Generation Core i3 series, Intel Celeron, Intel Pentiumv, Intel Xeon processor E3-1200 v3, Intel Xeon Processor E3-1200 v4 series.
Single Socket LGA 1150 supported
System Memory
- Memory Capacity
Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
4x 240-pin DDR3 DIMM sockets - Memory Type
1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
- DIMM Sizes
2GB, 4GB, 8GB
- Memory Voltage
1.5V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C224 Express PCH
- SATA
Intel C224 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Network Controllers
1 Realtek RTL8211E PHY (dedicated IPMI)
- Graphics
Aspeed AST2400 BMC
via KVM connector
Input / Output
- SATA
4 SATA3 (6Gbps) port
- LAN
1 RJ45 Dedicated IPMI LAN port
- USB
2 USB 2.0 via KVM connector
- Video Output
1 VGA port,
via KVM connector - Serial Port / Header
1 COM Port (1 rear), via KVM connector
- TPM
1 TPM Header
Expansion Slots
- PCI-E
1 PCI-E 3.0 x8 (Micro Low Profile)
for Dual GbE, 10GbE or IB AOC
System BIOS
- BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
- BIOS Features
DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard support
Management
- Power Configurations
ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on
