Product SKUs
- MBD-X10SLE-DF

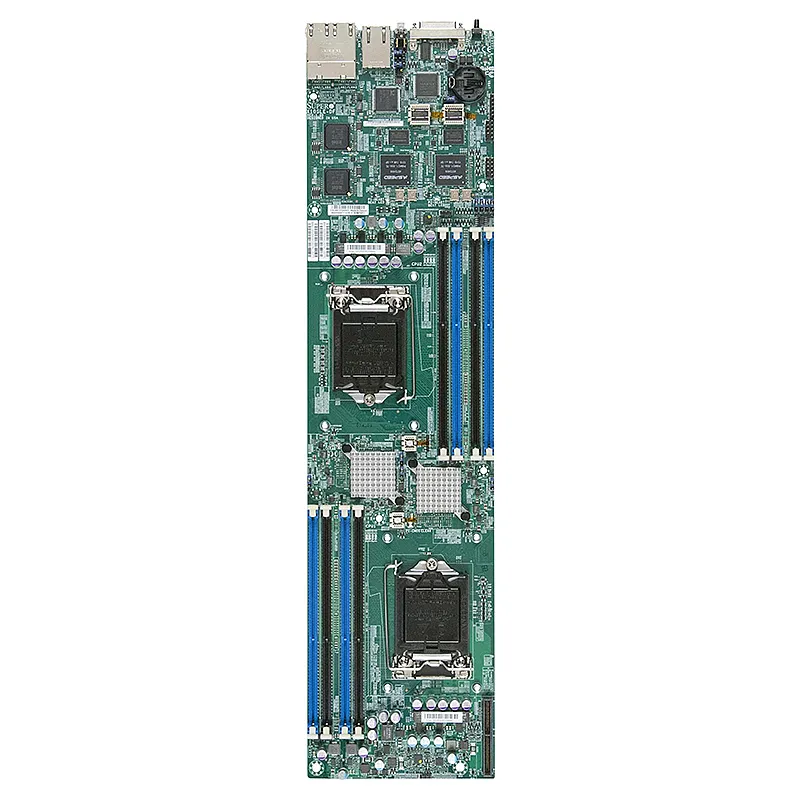

X10SLE-DF
Physical Stats
- Form Factor
Proprietary
- Dimensions
4.6″ x 18.5″ (11.68cm x 46.99cm)
Processor/Cache
- CPU
Intel 4th Generation Core i3 series, Intel Xeon processor E3-1200 v3, Intel Xeon Processor E3-1200 v4 series.
Single Socket LGA 1150 supported
8th Gen Intel Core desktop processors are supported with Intel 300 Series chipset motherboards only
System Memory
- Memory Capacity
Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
Up to 32GB ECC VLP-UDIMM DDR3-1600MHz per node - Memory Type
1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
- DIMM Sizes
2GB, 4GB, 8GB
- Memory Voltage
1.35V, 1.5V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C224 Express PCH
- SATA
Intel C224 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC - Network Controllers
Dual LAN with Intel i350 Gigabit Ethernet Controller Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Shared with 2 Nodes
- Graphics
Aspeed AST2400 BMC
via KVM connector
Input / Output
- LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port - USB
2 USB 2.0 via KVM connector
- Video Output
1 VGA port,
via KVM connector - Serial Port / Header
1 COM Port (1 rear), via KVM connector
- Others
KVM connector for 2 USB 2.0, VGA and COM Ports
Expansion Slots
- PCI-E
System BIOS
- BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
- BIOS Features
DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard support
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Power Configurations
ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
