Product SKUs

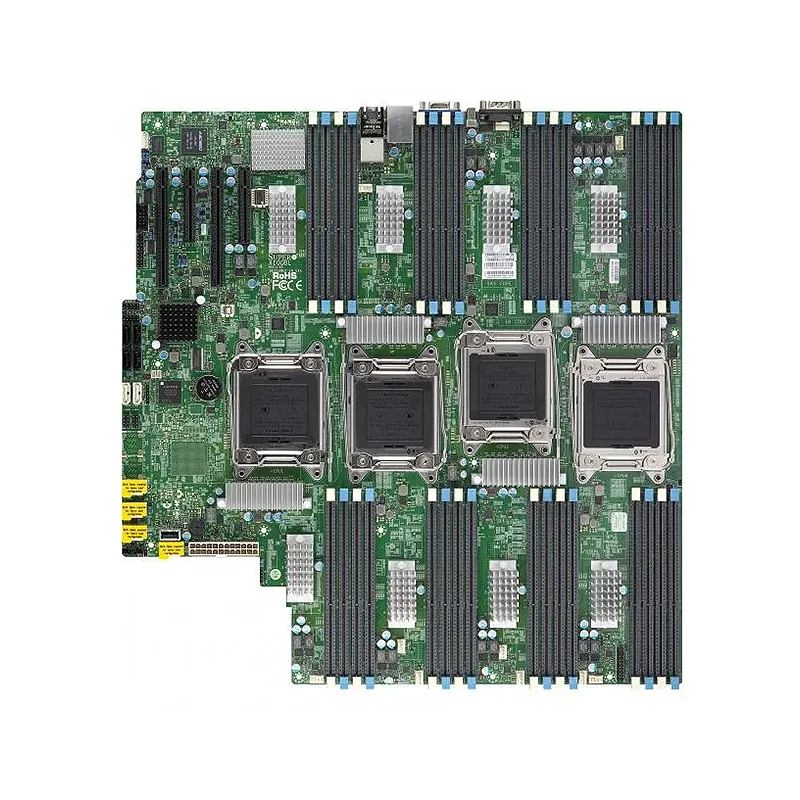

- MBD-X10QBL
X10QBL
Physical Stats
- Form Factor
Proprietary
- Dimensions
16.79″ x 16.4″ (42.65cm x 41.66cm)
Processor/Cache
- CPU
Intel Xeon processor E7-8800 v3, Intel Xeon processor E7-8800 v4.
Quad Socket R (LGA 2011) supported, CPU TDP support 165W TDP, 1 QPI up to 9.6GT/s - Cores / Cache
Up to 24 cores / Up to 60 MB cache
System Memory
- Memory Capacity
Up to 2TB 3DS ECC RDIMM, DDR3 1600/1333/1066 MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-1866MHz, in 32 DIMM slots
- Memory Type
1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
- DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB
- Memory Voltage
1.35V, 1.5V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C602J
- SATA
SATA2 (3Gbps) with RAID 0, 1, 5, 10 SATA3 (6Gbps) with RAID 0, 1
JBOD support (IT Mode) - IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC - Network Controllers
Dual LAN with Intel i350 Gigabit Ethernet Controller For X10QBL only Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
- Graphics
Aspeed AST2400 BMC
Input / Output
- SATA
2 SATA3 (6Gbps) port
4 SATA2 (3Gbps) ports - LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port - USB
6 USB 2.0 ports (3 rear + 2 headers + 1 Type A)
- Video Output
1 VGA port
- Serial Port / Header
2 COM Ports (1 rear, 1 header)
- TPM
1 TPM Header
Expansion Slots
- PCI-E
2 PCI-E 3.0 x16,
2 PCI-E 3.0 x8,
,
System BIOS
- BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
- BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
- Power Configurations
ACPI Power Management
Main Switch Override Mechanism
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
