Product SKUs

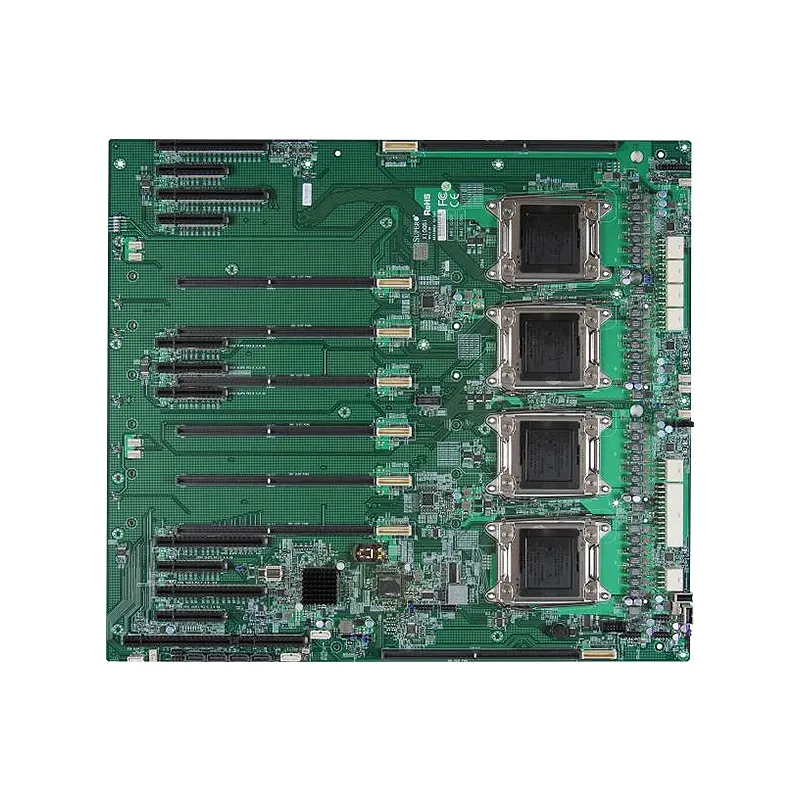

- MBD-X10QBi
X10QBi
Physical Stats
- Form Factor
Proprietary
- Dimensions
19″ x 17″ (48.26cm x 43.18cm)
Processor/Cache
- CPU
Intel Xeon processor E7-4800 series, Intel Xeon processor E7-4800 v2, Intel Xeon processor E7-4800 v3, Intel Xeon processor E7-4800 v4, Intel Xeon processor E7-8800 v2, Intel Xeon processor E7-8800 v3, Intel Xeon processor E7-8800 v4.
Quad Socket R1 (LGA 2011) supported, CPU TDP support 165W TDP - Cores / Cache
Up to 24 cores / Up to 60 MB cache
System Memory
- Memory Capacity
Up to 12TB 3DS ECC RDIMM, DDR4-1866MHz; Up to 12TB 3DS ECC LRDIMM, DDR4-1866MHz1866/1600/1333/1066/800MHz ECC DDR4 , 96 DIMM slots, up to 12 TB total memory capacity
- Memory Type
1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
- DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C602J
- SATA
8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
2 SATA2 (3 Gbps) ports; 4 RAID 0,1,5,10 - IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - Network Controllers
Intel X540 Dual port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1 Realtek RTL8291F PHY (dedicated IPMI)
- Graphics
Aspeed AST2400 BMC
Input / Output
- SATA
2 SATA3 (6Gbps) port
4 SATA2 (3Gbps) ports - LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port - USB
6 USB 2.0 ports (4 rear2 Type A)
- Video Output
2 VGA (1 rear bezel, 1 front panel) ports
- Serial Port / Header
2 COM Ports (1 rear, 1 header) 2 fast UART 16550 serial
Expansion Slots
- PCI-E
4x PCI-E 3.0 x16 (slot 2, 4, 9, 11)
7x PCI-E 3.0 x8 (slot 1, 3, 5, 6, 7, 8, 10)
System BIOS
- BIOS Type
AMI UEFI
