Product SKUs

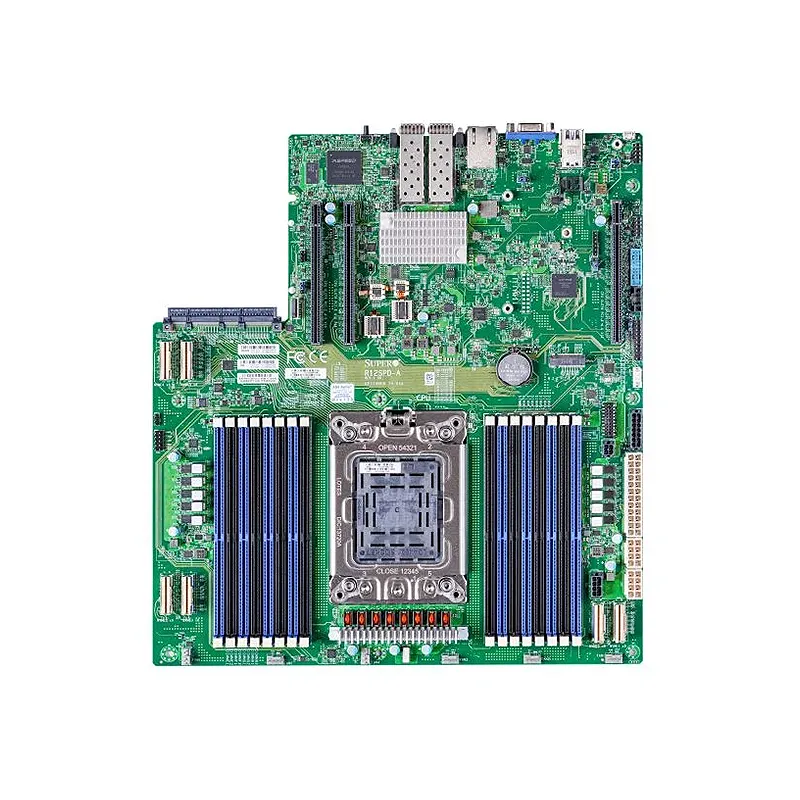

- MBD-R12SPD-A
Physical Stats
- Form Factor
Proprietary
- Dimension
12″ x 13″ (30.48cm x 33.02cm)
Processor
- CPU
Ampere Altra and Ampere Altra Max
Single Socket FCLGA-4926 supported, CPU TDP supports Up to 250W TDP - Core
Up to 128 cores / 16MB Cache
System Memory
- Memory Capacity
16 DIMM slots
Up to 4TB ECC Registered LRDIMM, DDR4-3200MT/s; Up to 4TB ECC Registered RDIMM, DDR4-3200MT/s - Memory Type
3200 MT/s ECC DDR4 LRDIMM, RDIMM
- DIMM Sizes
8GB, 16GB, 32GB, 64GB
- Memory Voltage
1.2V
On-Board Devices
- Chipset
- Graphics
1 Aspeed AST2600 BMC port(s)
- Network Controllers
Dual LAN with 10GbE with Mellanox ConnectX-4 Lx EN, Or One(1) 25Gb port with the 2nd port being redundant/failover
Input / Output
- USB
4 USB 3 port(s) (2 via header; 2 Type A)
1 USB 2 port(s) (1 via header) - Serial Port
1 COM Port(s) (1 Micro USB for COM (Debug))
- TPM
1 TPM Header
Expansion Slots
- PCIe
6 PCIe 4.0 x8 LP SlimSAS connector
3 x PCI-e 4.0 x16 connector- Altra Max or 2 x PCI-e 4.0 x16, 1 x8 connector – Altra
1 x AIOM (OCP3.0 Compliant) - M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI UEFI
Management
- System Management Software
IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
