Product SKUs

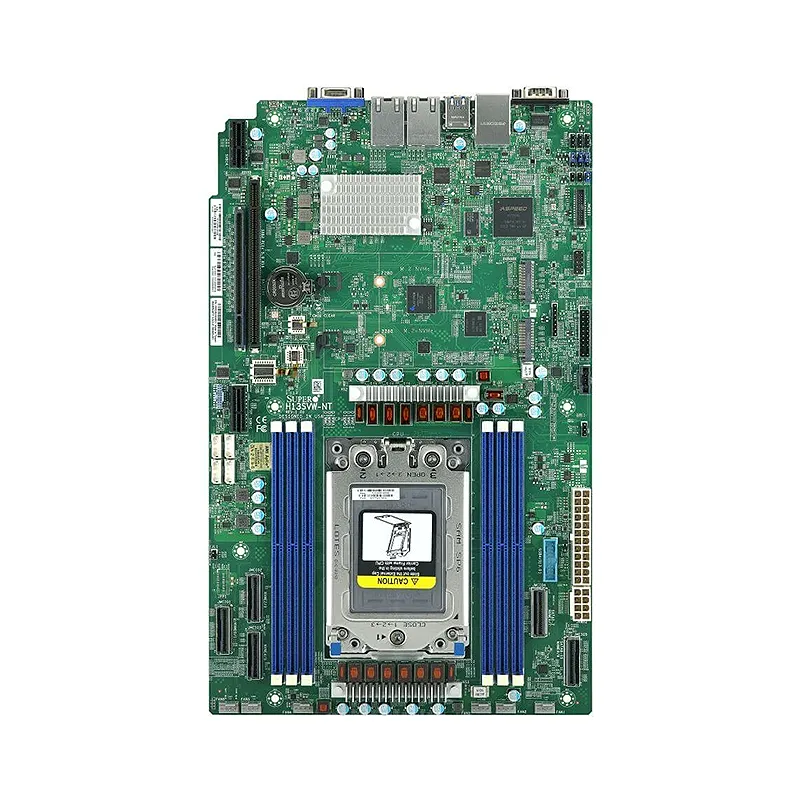

- MBD-H13SVW-NT-OS1
Physical Stats
- Form Factor
Proprietary WIO
- Dimension
8.15″ x 13.05″ (20.7cm x 33.15cm)
Processor
- CPU
AMD EPYC 8004 series Processors
Single Socket SP6 supported, CPU TDP supports Up to 225W TDP - Core
Up to 64 cores, 128 threads
System Memory
- Memory Capacity
6 DIMM slots
Up to 576GB ECC Registered RDIMM, DDR5-4800MT/s - Memory Type
4800 MT/s ECC DDR5 RDIMM
- DIMM Sizes
16GB, 32GB, 64GB, 96GB, 128GB
- Memory Voltage
12V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- Network Controllers
Dual LAN with Broadcom BCM57416 10GBase-T
Single LAN with Realtek RTL8211F PHY
Input / Output
- USB
6 USB 3 port(s) (4 USB; 2 via header)
- Video Output
1 VGA port(s)
- TPM
1 TPM Header
- Others
3 MCIO (PCIe 5.0 x8) Port(s)
2 MCIO (PCIe 5.0 x8/SATA3) Port(s)
Expansion Slots
- PCIe
1 PCIe 5.0 x16 Left Riser Slot,
1 PCIe 5.0 x32 Left Riser Slot - M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
