Product SKUs

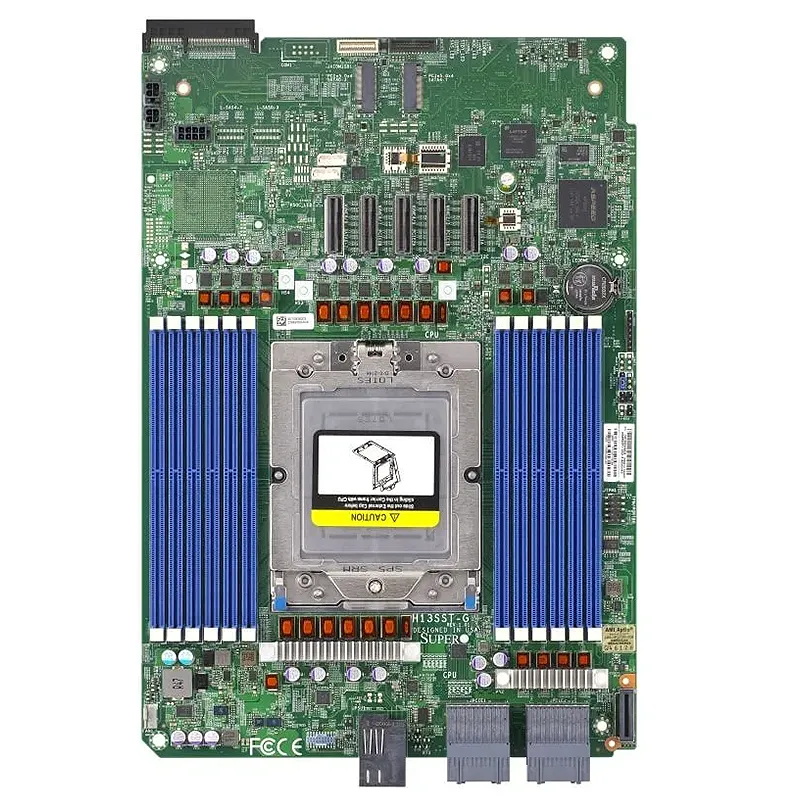

- MBD-H13SST-G
Physical Stats
- Form Factor
Proprietary GrandTwin
- Dimension
8.53″ x 12.42″ (21.67cm x 31.55cm)
Processor
- CPU
AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)
Single Socket SP5 supported, CPU TDP supports Up to 400W TDP - Core
Up to 160 cores, 320 threads
System Memory
- Memory Capacity
12 DIMM slots
Up to 4.5TB 3DS ECC Registered RDIMM, DDR5-6000MT/s - Memory Type
4800/6000 MT/s ECC DDR5 RDIMM (3DS) Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC) Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
- DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
- Memory Voltage
1.1V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- IPMI
ASPEED AST2600 BMC
- Graphics
1 Aspeed AST2600 BMC port(s)
- Network Controllers
Input / Output
- TPM
1 TPM Header
- Others
4 MCIO (PCIe 5.0 x8) Port(s)
1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
Expansion Slots
- PCIe
1 PCIe 4.0 x8 4C Slot
- M.2
M.2 Interface: 2 SATA/PCIe 4.0 x4
Form Factor: 2280
Key: M-Key
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Management
- Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery
