Product SKUs

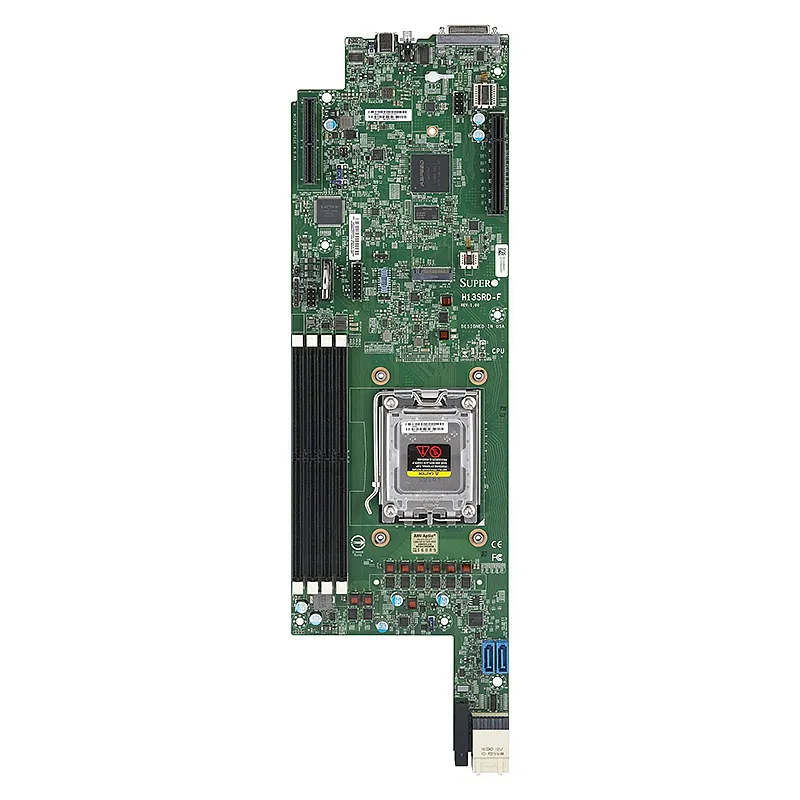

- MBD-H13SRD-F
Physical Stats
- Form Factor
Proprietary
- Dimension
4.75″ x 15.69″ (12.07cm x 39.85cm)
Processor
- CPU
AMD EPYC 4004 series Processors
Single Socket Socket AM5 (LGA-1718) supported, CPU TDP supports Up to 170W TDP - Core
Up to 16 cores, 32 threads
System Memory
- Memory Capacity
4 DIMM slots
Up to 192GB Unbuffered 3DS ECC/non-ECC UDIMM, DDR5-5200MT/s - Memory Type
5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (2DPC)/ 3600MT/s (1DPC)
- DIMM Sizes
8GB, 16GB, 32GB, 48GB
- Memory Voltage
1.1V
- Error Detection
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- IPMI
ASPEED AST2600 BMC
- Network Controllers
Single LAN with ASPEED AST2600 BMC, Via BPN connector
Input / Output
- SATA
2 SATA port(s) Link to AOC SAS Card
- USB
1 USB 3.2 Gen2 port(s) (1 type C)
2 USB 2 port(s) (2 rear Via KVM connector) - Video Output
1 VGA port(s) Via KVM connector
- Serial Port
1 COM Port(s) (1 Serial Port Via KVM connector)
- TPM
1 TPM Header & Chip both
Expansion Slots
- PCIe
1 PCIe 5.0 x8 (Low Profile),
1 PCIe 5.0 x8 (Micro Low Profile) - M.2
M.2 Interface: 1 PCIe 5.0 x2
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
- BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Management
- Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
