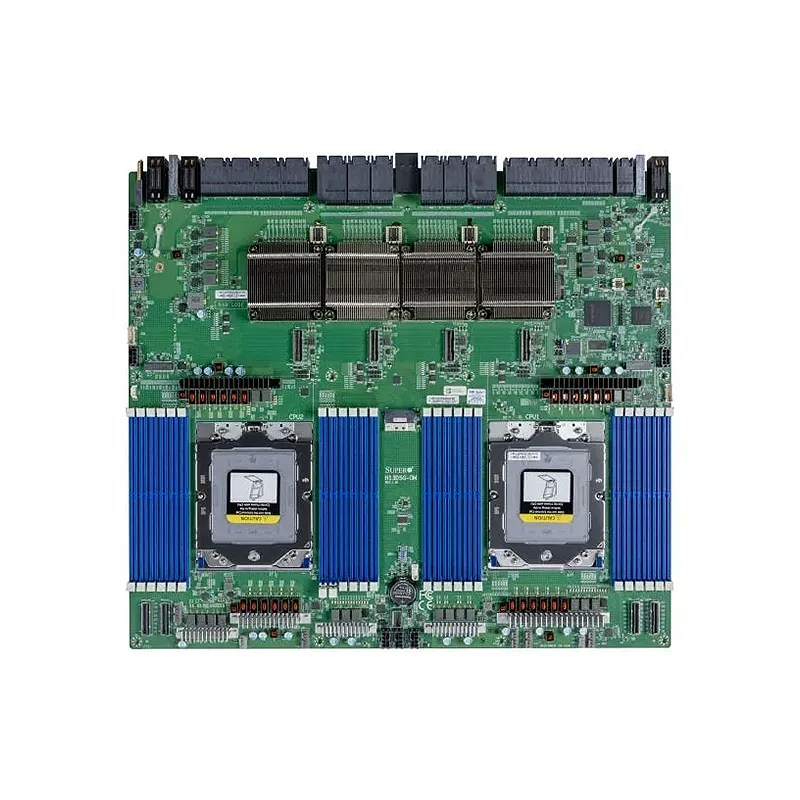

Supermicro MBD-H13DSG-OM

Product SKUs

Physical Stats

Processor

CPU
AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)
Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core
Up to 320 cores, 640 threads

System Memory

Memory Capacity
24 DIMM slots
Up to 9TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Memory Type
4800/6000 MT/s ECC DDR5 RDIMM (3DS) Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC) Up to 9TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support

Management

Power Configurations
Power-on mode for AC power recovery, ACPI Power Management

BIOS Features	ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
TPM	1 TPM Header
M.2	M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB
BIOS Type	AMI 32MB SPI Flash EEPROM
LAN	1 RJ45 Dedicated IPMI LAN port via I/O board
Dimension	17" x 14.96" (43.18cm x 37.99cm)
Form Factor	Proprietary
Memory Type	4800/6000 MT/s ECC DDR5 RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Others	2 MCIO (PCIe 5.0 x8/SATA3) Port(s)6 MCIO (PCIe 5.0 x8) Port(s)
Memory Voltage	1.1V
CPU	AMD EPYC 9004/9005 Series Processors (*AMD EPYC 9005 series drop-in support requires board revision 2.x)Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP
Memory Capacity	24 DIMM slotsUp to 9TB 3DS ECC Registered RDIMM, DDR5-6000MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	640 threads, Up to 320 cores
