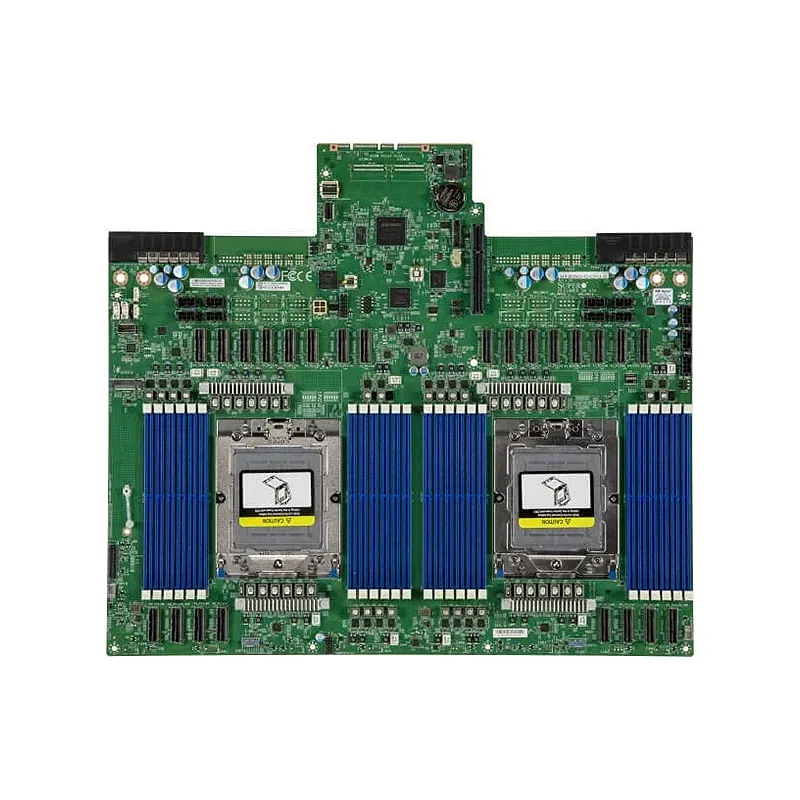

Supermicro MBD-H13DSG-O-CPU-D

Product SKUs

Physical Stats

Processor

CPU
AMD EPYC 9004 series Processors
Dual Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core
Up to 256 cores, 512 threads

System Memory

Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
Memory Type
4800/5200 MT/s ECC DDR5 RDIMM (3DS) Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor, 1DPC) Up to 9TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor, 1DPC)* (*Board revision 2.x required)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 192GB, 256GB, 384GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support

Management

Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery

BIOS Features	ACPI 6.4SMBIOS 3.5 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
TPM	1 TPM Header
M.2	M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 16GB, 192GB, 24GB, 256GB, 32GB, 384GB, 48GB, 64GB, 96GB
BIOS Type	AMI 32MB SPI Flash EEPROM
Dimension	17" x 14.7" (43.18cm x 37.34cm)
USB	1 USB 2.0 port(s) (1 via header)
Form Factor	Proprietary
Memory Type	4800/5200 MT/s ECC DDR5 RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Others	20 MCIO (PCIe 5.0 x8) Port(s)
Memory Voltage	1.1V
CPU	AMD EPYC 9004 series ProcessorsDual Socket SP5 supported, CPU TDP supports Up to 400W TDP
SATA	Asmedia ASM1061 controller for 2 SATA3 (6 Gbps) ports
Memory Capacity	24 DIMM slotsUp to 6TB 3DS ECC Registered RDIMM, DDR5-4800MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	512 threads, Up to 256 cores
