| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 1 PCI-E 4.0 x32 Left Riser Slot1 PCI-E 4.0 x16 Right Riser Slot |
| Cores | Up to 64 Cores |
| Network Controllers | 2x 10GbE LAN Ports via Broadcom BCM574161 Realtek RTL8211E PHY (dedicated IPMI) |
| M.2 | 22110Key: M-Key, Interface: 2 SATA/PCI-E 3.0 x2Form Factor: 2280 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 2 RJ45 10GBase-T LAN ports1 RJ45 Dedicated IPMI LAN port |
| NVMe | 2 NVMe (PCI-E Gen4) |
| USB | 1 Type A), 2 via header, 7 USB 3.0 ports (4 rear |
| Form Factor | Proprietary WIO |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port2 SuperDOM power connectors1 TPM 1.2/2.0 header |
| VGA | 1 VGA port |
| SATA/NVMe Hybrid | 16 SATA3 / 4 NVMe (PCI-E Gen3) |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3 |
| SATA | 2 SATA3 (6 Gbps) ports |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 8.15" x 13.05" |

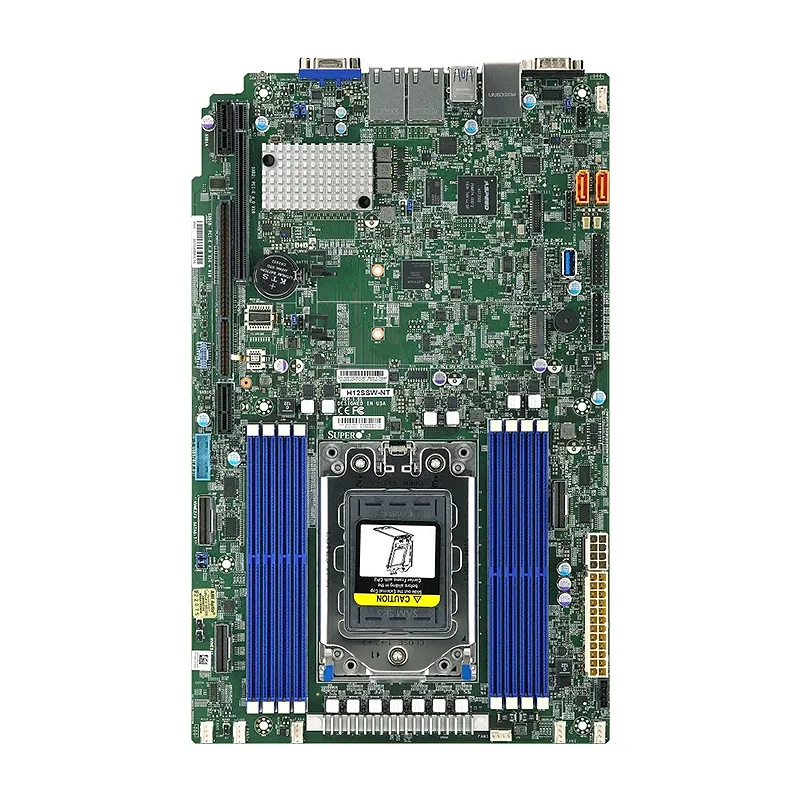

* NOTE: Image may not exactly match the product
Supermicro MBD-H12SSW-NT
$Quote1 Piece(MOQ)
100% New and Genuine
