| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 1 PCI-E 4.0 x16 Left Riser Slot1 PCI-E 4.0 x16 Right Riser Slot1 PCI-E 4.0 x24 Proprietary Slot1 PCI-E 4.0 x16 SIOM LAN Networking Slot |
| Cores | Up to 64 Cores |
| Network Controllers | 1 PCI-E 4.0 x16 SIOM LAN Networking Slot1 Realtek RTL8211F PHY (dedicated IPMI) |
| M.2 | 2280Key: M-Key, Interface: 1 SATA/PCI-E 3.0 x4Form Factor: 22110 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | Provided via SIOM1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (2 rear)1 USB 2.0 port (Type A) |
| Form Factor | Proprietary BigTwin |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port (header)1 SuperDOM power connector1 TPM 1.2/2.0 header |
| VGA | 1 VGA port |
| Memory Voltage | 1.2V |
| CPU | Dual AMD EPYC 7003/7002 Series ProcessorsSocket SP3 |
| SATA | 6 SATA3 (6 Gbps) ports |
| Memory Capacity | 16 DIMM slotsSupports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 6.8" x 18.86" |

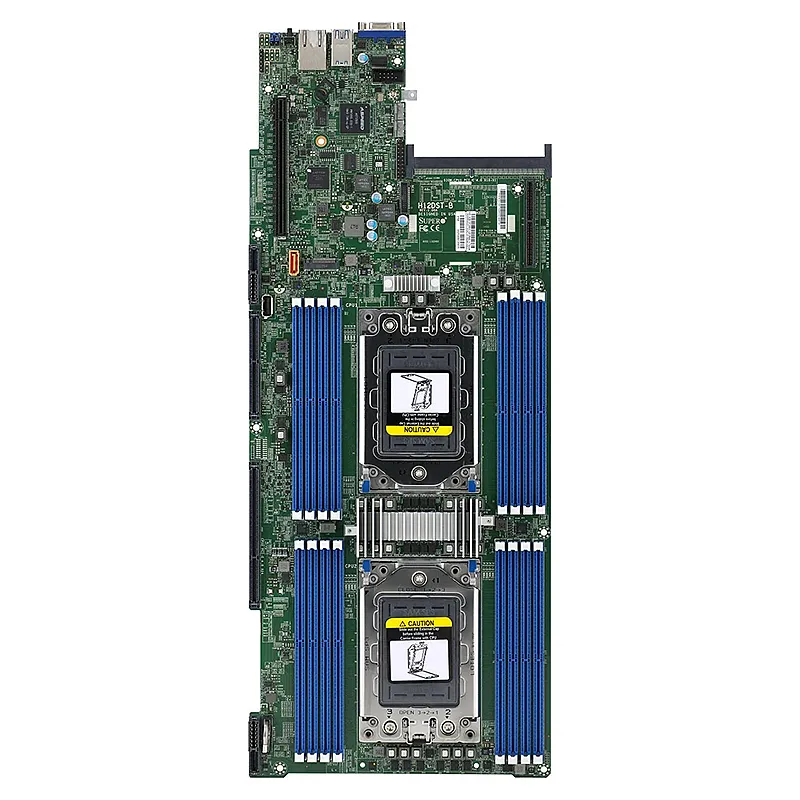

* NOTE: Image may not exactly match the product
Supermicro MBD-H12DST-B
