Product SKUs

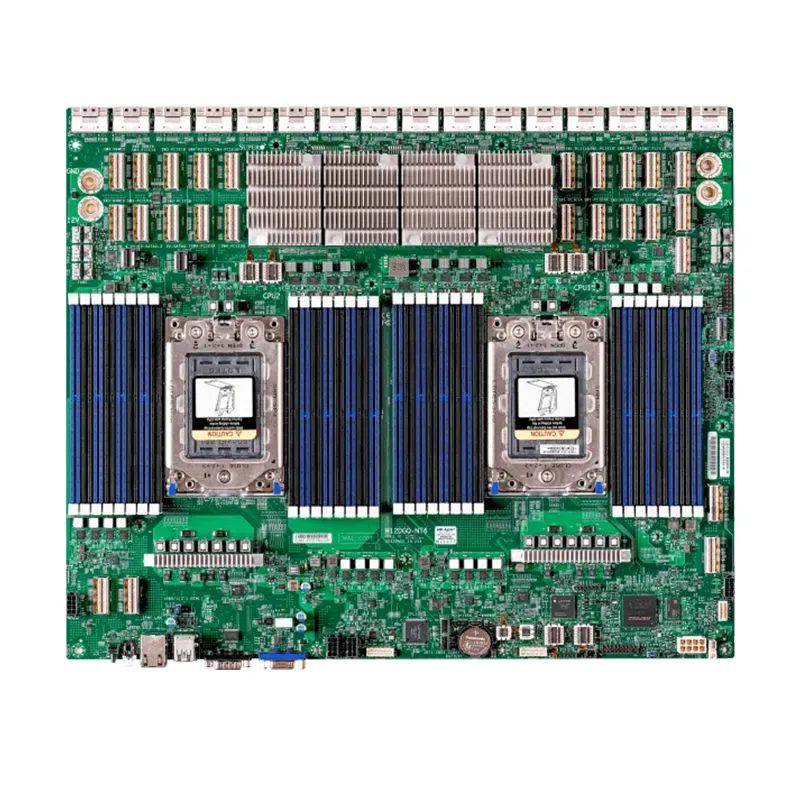

- MBD-H12DGQ-NT6
Physical Stats
- Form Factor
Proprietary
- Dimension
17.32″ x 14.29″ (43.99cm x 36.29cm)
Processor
- CPU
AMD EPYC 7003/7002 Series Processors
Dual Socket Socket SP3 supported, CPU TDP supports Up to 280W TDP - Core
Up to 64/128
System Memory
- Memory Capacity
32 DIMM slots
8TB ECC Registered SDRAM, DDR4-3200MT/s - Memory Type
3200 MT/s ECC DDR4 SDRAM
- DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
SDRAM: 16GB, 32GB, 64GB, 128GB, 256GB - Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
System on Chip
- SATA
12 SATA (6 Gbps) ports
- Network Controllers
Input / Output
- Video Output
1 VGA port(s)
- Serial Port
1 COM Port(s) (1 rear)
Expansion Slots
- PCIe
16 PCIe 4.0 x8 SlimSAS to GPU,
16 PCIe 4.0 x8 SlimSAS to Riser,
4 PCIe 4.0 x8 SlimSAS to AIOM/Riser
System BIOS
- BIOS Type
AMI 256MB Flash EEPROM
